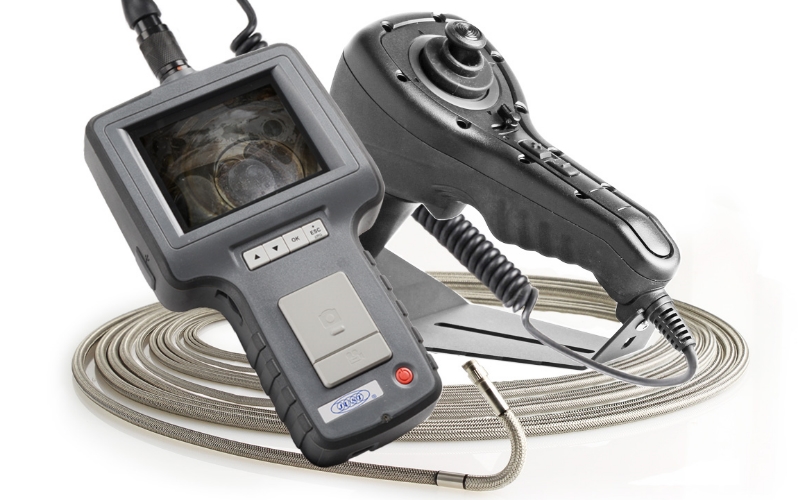

360° Articulation VGA Probe 6mm (J series)
1 / 3
  • 360° Articulation VGA Probe 6mm (J series)
  • 360° Articulation VGA Probe 6mm (J series)
  • 360° Articulation VGA Probe 6mm (J series)
360° Articulation VGA Probe 6mm (J series)
Description:
Ø6mm 360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability, flexibility and also rusty, water and temperature resistant.

• Fast and easy joystick operation :
Provide snapshot(freeze image), light+(boost) and light- functions on the controller
• Stainless Steel Braided tube :
Durable, rusty and temperature resistant
• Full ways articulation :
Provide flexibilities in narrow space inspection
• Dust/water protection : IP67
Download file
  • Introduction
  • Specification
  • Console System
  • Model
  • Optional Accessory
  • Q&A
  • 360° Full Way Articulation

    Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.

    The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.

    360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.



    eturn to previous page
  • Features Description
    Probe Type 360° Articulation (4Way)
    Tip Diamete Ø 6.0 mm
    Camera Length 24mm
    Camera Material Stainless Steel
    F.O.V 87°
    D.O.F. 10 mm ~ 100 mm
    Resolution 640 X 480 ( VGA )
    Working Temperature -10°C ~ 60°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1M / 3M   5M / 7M
    Light Source Front (White LED * 3 ) / Side (White LED * 2 )                 Front (Ultra-lumi Circle Front LED, 40000Lx ) / Side (White LED * 2 )
    Articulation Angle Full ways ≥ 110° ( 1M ) Full ways ≥ 80° ( 1M )
    Articulation Radius (at angle 90°) ≒ 55mm ( 1M )
    Articulation Radius (at max angle) ≒ 50mm ( 1M )
    Mirror Available (DualView, 70° / 90° / 110° View)
    Waterpoof IP67
  • JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More

    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model Type of Probe Tip Dia. Length Material of Tube Console System
    JKVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 7" Monitor
    JKVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 7" Monitor
    JKVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 7" Monitor
    JKVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 7" Monitor
    JFVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 3.5" Monitor
    JFVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 3.5" Monitor
    JFVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 3.5" Monitor
    JFVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 3.5" Monitor

  • Dual View Mirror.

    Simultaneously Achieve both Front & Side View.




    Side Mirror


    - Angle : 70° / 90° / 110°



    Holding Tube

    Extender to inspect areas lower or higher than eye level.
    - Diameter : Ø8mm
    - Lengh : 990mm


  • Articulation Probes Compare
    Model JIVS-60014~74 JIVS-45022/32 JIVS-60011 JIVS-60012~32
    Prob​e Length 1M/3M(5M/7M for option) 1.5M(3M for option) 1M 1M(2M/3M for option)
    Camera Diameter 6mm 4.5mm 6mm 6mm
    Camera Head Length 24mm 13mm 10mm 23mm
    Resolution VGA(640*480) VGA(640*480) VGA(640*480) QVGA(640*480)
    Probe Material Outer Braided Stainless Steel Outer Braided ​Stainless Steel Outer Braided ​Stainless Steel Stainless steel withouter PVC
    Max Articulation Angle Full way > 110˚ Right: 180˚ / Left: 180˚ Right: 180˚ / Left:180˚ Right: 155˚ / Left: 155˚
    F.O.V. (Diagonal) 87˚ 90˚ 87˚ 56˚
    D.O.F. 1cm~10cm 1cm~10cm 1cm~6cm 1cm~6cm
    Articulation Radius (at 90˚ ) 55mm 35mm 30mm 48mm
    Articulation Radius (at max angle) 50mm 27mm 18mm 43mm
    Side View Mirror Yes (70˚/90˚/110˚available) No No Yes (70˚/90˚/110˚available)
    Functions Image Rotation /Side LED Light Boost /Image Rotation Light Boost /Image Rotation Light Boost / Image Rotation/Side LED
    There many advantage that articulating video borescopes offer.

    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.
    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the JKVS-60014, JKVS-60034, JKVS-60054 and JKVS-60074 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When JKVS cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.
  • Introduction

    360° Full Way Articulation

    Thumb-driven joy stick provides full articulationcontrol, 360 degrees camera articulation with theon-board image and video capture capability.The mechanized joystick uses the operator input to directly control camera articulation.

    The result is smooth and accurate control of the articulating tip, with immediate response to joystick inputs.

    360° articulation provide flexibilities in narrow space inspection. High density stainless steel braided tube provide durability,flexibility and also rusty, water and temperature resistant.



    eturn to previous page
  • Specification
    Features Description
    Probe Type 360° Articulation (4Way)
    Tip Diamete Ø 6.0 mm
    Camera Length 24mm
    Camera Material Stainless Steel
    F.O.V 87°
    D.O.F. 10 mm ~ 100 mm
    Resolution 640 X 480 ( VGA )
    Working Temperature -10°C ~ 60°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1M / 3M   5M / 7M
    Light Source Front (White LED * 3 ) / Side (White LED * 2 )                 Front (Ultra-lumi Circle Front LED, 40000Lx ) / Side (White LED * 2 )
    Articulation Angle Full ways ≥ 110° ( 1M ) Full ways ≥ 80° ( 1M )
    Articulation Radius (at angle 90°) ≒ 55mm ( 1M )
    Articulation Radius (at max angle) ≒ 50mm ( 1M )
    Mirror Available (DualView, 70° / 90° / 110° View)
    Waterpoof IP67
  • Console System

    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More

    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model
    Model Type of Probe Tip Dia. Length Material of Tube Console System
    JKVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 7" Monitor
    JKVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 7" Monitor
    JKVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 7" Monitor
    JKVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 7" Monitor
    JFVS-60014 360° articulation Ø 6.0mm 1M Braided Stainless steel 3.5" Monitor
    JFVS-60034 360° articulation Ø 6.0mm 3M Braided Stainless steel 3.5" Monitor
    JFVS-60054 360° articulation, Ultra-lumi LED Ø 6.0mm 5M Braided Stainless steel 3.5" Monitor
    JFVS-60074 360° articulation, Ultra-lumi LED Ø 6.0mm 7M Braided Stainless steel 3.5" Monitor
  • Optional Accessory

    Dual View Mirror.

    Simultaneously Achieve both Front & Side View.




    Side Mirror


    - Angle : 70° / 90° / 110°



    Holding Tube

    Extender to inspect areas lower or higher than eye level.
    - Diameter : Ø8mm
    - Lengh : 990mm


  • Q&A
    Articulation Probes Compare
    Model JIVS-60014~74 JIVS-45022/32 JIVS-60011 JIVS-60012~32
    Prob​e Length 1M/3M(5M/7M for option) 1.5M(3M for option) 1M 1M(2M/3M for option)
    Camera Diameter 6mm 4.5mm 6mm 6mm
    Camera Head Length 24mm 13mm 10mm 23mm
    Resolution VGA(640*480) VGA(640*480) VGA(640*480) QVGA(640*480)
    Probe Material Outer Braided Stainless Steel Outer Braided ​Stainless Steel Outer Braided ​Stainless Steel Stainless steel withouter PVC
    Max Articulation Angle Full way > 110˚ Right: 180˚ / Left: 180˚ Right: 180˚ / Left:180˚ Right: 155˚ / Left: 155˚
    F.O.V. (Diagonal) 87˚ 90˚ 87˚ 56˚
    D.O.F. 1cm~10cm 1cm~10cm 1cm~6cm 1cm~6cm
    Articulation Radius (at 90˚ ) 55mm 35mm 30mm 48mm
    Articulation Radius (at max angle) 50mm 27mm 18mm 43mm
    Side View Mirror Yes (70˚/90˚/110˚available) No No Yes (70˚/90˚/110˚available)
    Functions Image Rotation /Side LED Light Boost /Image Rotation Light Boost /Image Rotation Light Boost / Image Rotation/Side LED
    There many advantage that articulating video borescopes offer.

    Most NDT applications have small, limited entrance that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corner.
    However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even cost effective tool) to finish the job.

    When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.


    Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

    With advanced articulate inspection device like the JKVS-60014, JKVS-60034, JKVS-60054 and JKVS-60074 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When JKVS cameras do not have to be repeatedly manipulate with the purpose of complete inspections, NDT technicians can safe valuable working time.
