Probe of Borescope

  • Home
  • Products
  • Probe of Borescope
Products
  • Borescope
  • Probe of Borescope
  • Stereo Microscope
  • Biological Microscope
  • Metallurgical Microscope
  • Fluorescence Microscope
  • Polarization Microscope
  • Digital Microscope
  • Multi-viewing Microscope
  • Comparison Microscope
  • Electronic Eyepieces
  • Illumination
  • Protable Microscope
  • Magnifying Fluorescent
  • Accessories of Microscope
1 / 4

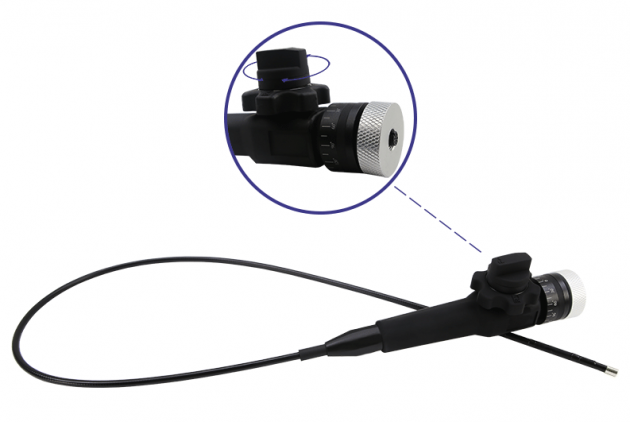

2-Way Articulation Probe (P Series)
Description:
- Ø3.9mm Thin 2Way Articulating Probe
- Flexible cable probe
- Camera OD 3.9 mm, 60° FOV, Short Focus
- 4 bright LEDs
- IP67 Waterproof up to 3.3FT (1M) / Dustproof
- Accessories include reflection mirror, guide (anti-snag) ball, magnet tip, hook can be purchased separately
- Focus : 15 ~ 60 mm
  • Introduction
  • Specification
  • Console System
  • Model
  • Optional Accessory
  • Application
  •
  • Features Description
    Probe Type 2Way Articulation
    Tip Diamete Ø 3.9 mm
    Camera Material Stainless Steel
    F.O.V 56°
    D.O.F. 20 mm ~ 60 mm
    Resolution 320 X 240 ( QVGA )
    Light Source White LED * 4
    Working Temperature -10°C ~ 60°C
    Probe Material Soft-Metal
    Probe Length 1M / 2M / 3M
    Articulation Angle Right / Left : 135° ( 1M )
    Mirror Available (70° / 90° / 110° View)
    Waterpoof IP67
  •

    PR Main Console System

     - 5" TFT LCD (640 x 480).
    - Wireless Transmission.
    - Snapshot & Video Recording with Audio.
    - Snapshot while Recording / Replaying.
    - LED brightness adjustment.
    - 2X Zoom in and Image rotation .
    - Photo Comparison function .
    - Made in Taiwan. High Durability
    - One Year Warranty.
    - Ship worldwide

    Read More

    PM Main Console System

    ‧- 3.5" TFT LCD (320 x 240).
    - Snapshot & Video Recording with Audio.
    - Snapshot while Recording / Replaying.
    - LED brightness adjustment.
    - 2X Zoom in and Image rotation .
    - Photo Comparison function .

    Read More
  •
  •
  • Building Data...
  • Introduction

  • Specification
    Features Description
    Probe Type 2Way Articulation
    Tip Diamete Ø 3.9 mm
    Camera Material Stainless Steel
    F.O.V 56°
    D.O.F. 20 mm ~ 60 mm
    Resolution 320 X 240 ( QVGA )
    Light Source White LED * 4
    Working Temperature -10°C ~ 60°C
    Probe Material Soft-Metal
    Probe Length 1M / 2M / 3M
    Articulation Angle Right / Left : 135° ( 1M )
    Mirror Available (70° / 90° / 110° View)
    Waterpoof IP67
  • Console System


    PR Main Console System

     - 5" TFT LCD (640 x 480).
    - Wireless Transmission.
    - Snapshot & Video Recording with Audio.
    - Snapshot while Recording / Replaying.
    - LED brightness adjustment.
    - 2X Zoom in and Image rotation .
    - Photo Comparison function .
    - Made in Taiwan. High Durability
    - One Year Warranty.
    - Ship worldwide

    Read More

    PM Main Console System

    ‧- 3.5" TFT LCD (320 x 240).
    - Snapshot & Video Recording with Audio.
    - Snapshot while Recording / Replaying.
    - LED brightness adjustment.
    - 2X Zoom in and Image rotation .
    - Photo Comparison function .

    Read More
  • Model

  • Optional Accessory

  • Application
    Building Data...
