2 Way Articulation Probe 6mm (J Series)
1 / 1
  • 2 Way Articulation Probe 6mm (J Series)

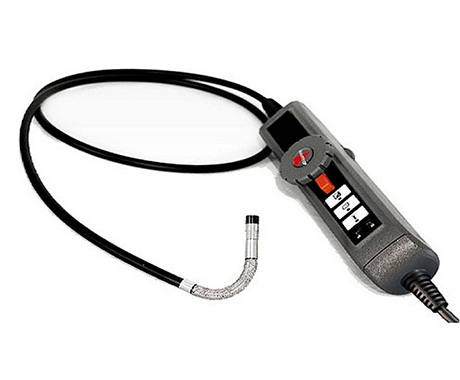

2 Way Articulation Probe 6mm (J Series)
Description:
● Ø6.0mm 2Way  VGA Articulating Probe easy control probe articulation. Allows wider angle viewing during inspection.
● Articulation function helps you to easily maneuver the camera probe into extremely tight spaces, helping to check angles generally could not be seen easily.

● Equiped with three useful function keys: Boost light / Image Rotate / Side & Forward Led Switch (Dust free & Anti Reflection)
Download file
  • Introduction
  • Specification
  • Console System
  • Model
  • Optional Accessory
  • Q&A


  •
    Articulation Probes Compare





  • Features Description
    Probe Type 2Way Articulation
    Tip Diamete Ø 6.0 mm
    Camera Length 23mm
    Camera Material Stainless Steel
    F.O.V 87°
    D.O.F. 10 mm ~ 100 mm
    Resolution 640 X 480 ( VGA )
    Light Source Front (White LED * 3 ) / Side (White LED * 2 )
    Working Temperature -10°C ~ 60°C
    Probe Material Soft - Metal
    Probe Length 1M / 2M / 3M
    Articulation Angle Right / Left ≥ 155° ( 1M)
    Articulation Radius (at angle 90°) ≒ 50mm ( 1M)
    Articulation Radius (at max angle) ≒ 45mm ( 1M)
    Mirror Available (70° / 90° / 110° View)
    Waterpoof IP67
  •

    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More



    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model Type of Probe Tip Dia. Length Material of Tube Console System
    JKVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 7" Monitor
    JKVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 7" Monitor
    JKVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 7" Monitor
    JFVS-60012 2way articulation Ø 6.0mm 1M Soft-Metal 3.5" Monitor
    JFVS-60022 2way articulation Ø 6.0mm 2M Soft-Metal 3.5" Monitor
    JFVS-60032 2way articulation Ø 6.0mm 3M Soft-Metal 3.5" Monitor

  • Side Mirror


    - Angle : 70° / 90° / 110°



    Holding Tube

    Extender to inspect areas lower or higher than eye level.
    - Diameter : Ø8mm
    - Lengh : 990mm


  • Articulating borescopes has an insertion tube of a videoscope usually consists of inside steel wires for 360° / 2-way direction control. On both ends of steel wires, there are securing parts to make both ends fixed. To achieve the flexibility as well as reliability, the bending section at the front end and the Steering knob/joystick at the back end are the most critical. By turning/moving the knob/joystick at the handle, it can drive the strands steel wires to move and thus drive the front bending articulation tip to flexibly swing.

    Below is common knowledge of these two types:

      Non Articulation Borescope Articulation Borescope
    Insertion Tube Soft-metal or Semi-rigid Stainless Metal Braided / soft-metal (more wear-resistant)
    Assembly Process Easier More Complicated with multi production procedures
    Advantage Basic Inspection at lower price Articulation for better viewing angle. Can do more job in different working environment
    Disadvantage Limited viewing angle for inspection More expensive for new and repair
