Diameter Ø28mm camera with 30m long cable allow the video inspection camera unique access to view the insides of pipes, vents, ducts and walls. Very easy to use and provides excellent image quality.
Great for indoor and outdoor inspection and providing wide application usage.
This revolutionary Pipe Inspection System provides the ideal inspection experience through interchangeable cameras, longer insertion tube lengths.
-
ApplicationWater Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing
‧ Search & Rescue applications ‧ Military
House Plumbing Inspection
Camera can pass through two 90° pipe elbow easily
OD 40mm pipeline
High Durability For Hard Working
equipped with 30cm cables for your tough inspections: construction sites,heater and air condition, drains and plumbing…etc.
Package
BIG PORTABLE CASE
ECONOMY CARTON PACKAGE

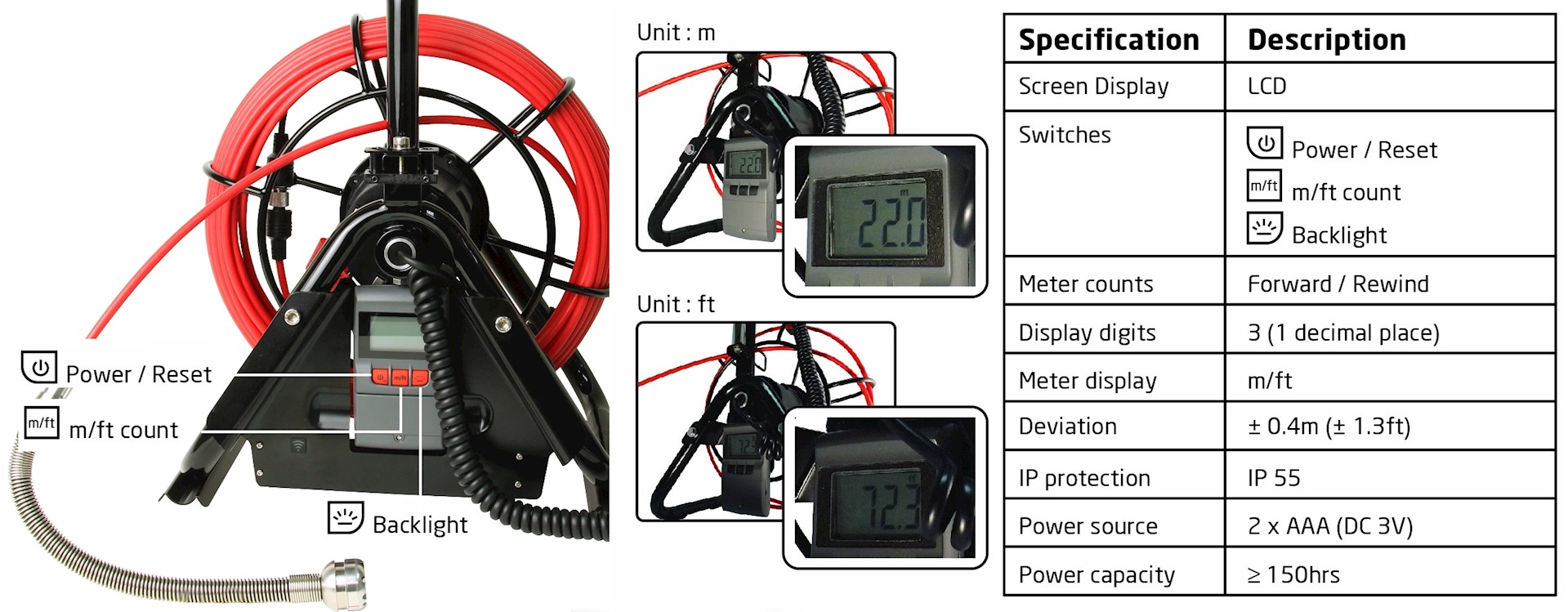

New Standard Accessory - Pipe Meter

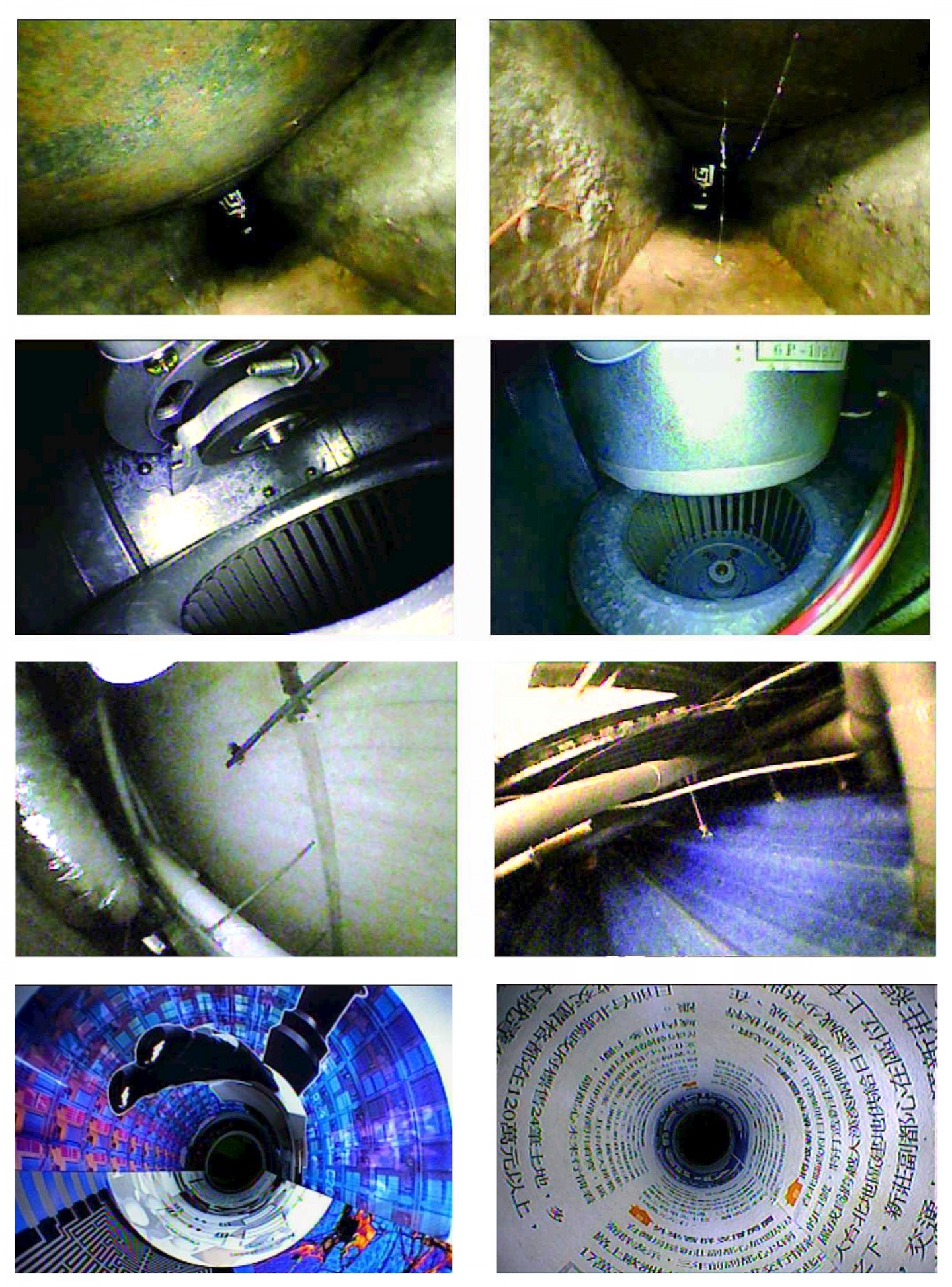

Interchangeable Camera Head 28mm - on 6mm 30m Red ProbeSample Images
Fast Delivery
General 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Features Description Camera Diamete Ø 28 mm Camera Length 24.3mm Camera Material Stainless Steel Goose Neck 270 mm F.O.V. 150.8° D.O.F. 10 mm ~ ∞ Resolution 640 X 480 ( VGA ) Light Source Hight Brightness 8 White LED (3000 lux) Probe Diamete Ø 6.0 mm Probe Material Fiber Glass Probe Length 10M 30M Interchangeable Head NO YES Meter NO YES Waterpoof Porbe : IP67 / Reel : IP65 Flexibility Continuously 90° sharp turn in Ø 40 mm / Ø 50mm water pipe Working Temperature -10°C ~ 60°C -
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model Type of Probe Tip Dia. Length Material of Tube Console System JKS-2810 Pipe Inspection Ø 28mm 10M Hard Soft-Metal 7" Monitor JKS-2830M Pipe Inspection Ø 28mm 30M Hard Soft-Metal 7" Monitor JGS-2810 Pipe Inspection Ø 28mm 10M Hard Soft-Metal 3.5" Monitor JGS-2830M Pipe Inspection Ø 28mm 30M Hard Soft-Metal 3.5" Monitor -
What Is Pipe Inspection Camera?
Pipe inspection cameras also called sewer cameras, drain cameras as well as snake cameras are a type of non-articulating inspection camera used to perform a visual inspection of pipe lines and including underground pipes and architecture pipes. Typical sewer inspection camera diameters range from 6mm diameter up to 2” diameters and lengths from 10 meter to 100 meter. Pipeline inspection systems enable operators to visually inspect pipes and pipe walls in drain lines from 1 inches to 20 inches in diameter.
Usually pipe inspection cameras are designed with a video camera on its tip. Most sewer inspection systems have LED lighting at the tip to lighten the inspection space. Pipe cameras are flexible for ideal maneuverability, allowing users to carry out visual inspections through the elbows, turns and bends of pipe lines and plumbing pipes.
Well thought-out by lots of plumbers as one of the most valuable device in the plumbing industry, pipe inspection cameras are specifically designed waterproof to offer a thorough inspection for countless water exposed piping environments.
Main Usage:
Water Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing‧ Search & Rescue applications ‧ Military
-
Introduction
ApplicationWater Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing
‧ Search & Rescue applications ‧ Military
House Plumbing Inspection
Camera can pass through two 90° pipe elbow easily
OD 40mm pipeline
High Durability For Hard Working
equipped with 30cm cables for your tough inspections: construction sites,heater and air condition, drains and plumbing…etc.
Package
BIG PORTABLE CASE
ECONOMY CARTON PACKAGE
New Standard Accessory - Pipe Meter
Interchangeable Camera Head 28mm - on 6mm 30m Red ProbeSample ImagesFast Delivery
General 2~5 working days shipment for Sample. From Taiwan factory to Worldwide.
-
Specification
Features Description Camera Diamete Ø 28 mm Camera Length 24.3mm Camera Material Stainless Steel Goose Neck 270 mm F.O.V. 150.8° D.O.F. 10 mm ~ ∞ Resolution 640 X 480 ( VGA ) Light Source Hight Brightness 8 White LED (3000 lux) Probe Diamete Ø 6.0 mm Probe Material Fiber Glass Probe Length 10M 30M Interchangeable Head NO YES Meter NO YES Waterpoof Porbe : IP67 / Reel : IP65 Flexibility Continuously 90° sharp turn in Ø 40 mm / Ø 50mm water pipe Working Temperature -10°C ~ 60°C -
Console System
JK Main Console System
‧ Large 7" HQ LCD Monitor (800*480)
‧ Snapshot & Video Recording with Audio (640*480)
‧ LED brightness adjustment
‧ Mirror Image & Image Rotation
‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
‧ USB to PC Conneciotn
‧ Live View Software to PC
‧ Long duty hour up to 6 hrs
‧ 1 meter drop test
‧ Waterproof and dustproof grade IP 55
JF Main Console System
‧ 3.5" TFT LCD Monitor (320*240)
‧ Snapshot & Video Recording (640*480)
‧ LED brightness adjustment
‧ 2X Zoom In & Mirror Image
‧ USB to PC Conneciotn -
Model
Model Type of Probe Tip Dia. Length Material of Tube Console System JKS-2810 Pipe Inspection Ø 28mm 10M Hard Soft-Metal 7" Monitor JKS-2830M Pipe Inspection Ø 28mm 30M Hard Soft-Metal 7" Monitor JGS-2810 Pipe Inspection Ø 28mm 10M Hard Soft-Metal 3.5" Monitor JGS-2830M Pipe Inspection Ø 28mm 30M Hard Soft-Metal 3.5" Monitor -
Optional Accessory
-
Q&A
What Is Pipe Inspection Camera?
Pipe inspection cameras also called sewer cameras, drain cameras as well as snake cameras are a type of non-articulating inspection camera used to perform a visual inspection of pipe lines and including underground pipes and architecture pipes. Typical sewer inspection camera diameters range from 6mm diameter up to 2” diameters and lengths from 10 meter to 100 meter. Pipeline inspection systems enable operators to visually inspect pipes and pipe walls in drain lines from 1 inches to 20 inches in diameter.
Usually pipe inspection cameras are designed with a video camera on its tip. Most sewer inspection systems have LED lighting at the tip to lighten the inspection space. Pipe cameras are flexible for ideal maneuverability, allowing users to carry out visual inspections through the elbows, turns and bends of pipe lines and plumbing pipes.
Well thought-out by lots of plumbers as one of the most valuable device in the plumbing industry, pipe inspection cameras are specifically designed waterproof to offer a thorough inspection for countless water exposed piping environments.
Main Usage:
Water Pipe ‧Industry and construction ‧ Heat and air conditioning ‧ Building services ‧ Engineering ‧ Plumbing‧ Search & Rescue applications ‧ Military
