Video Borescope Key Features

High Resolution Screen 5.1"

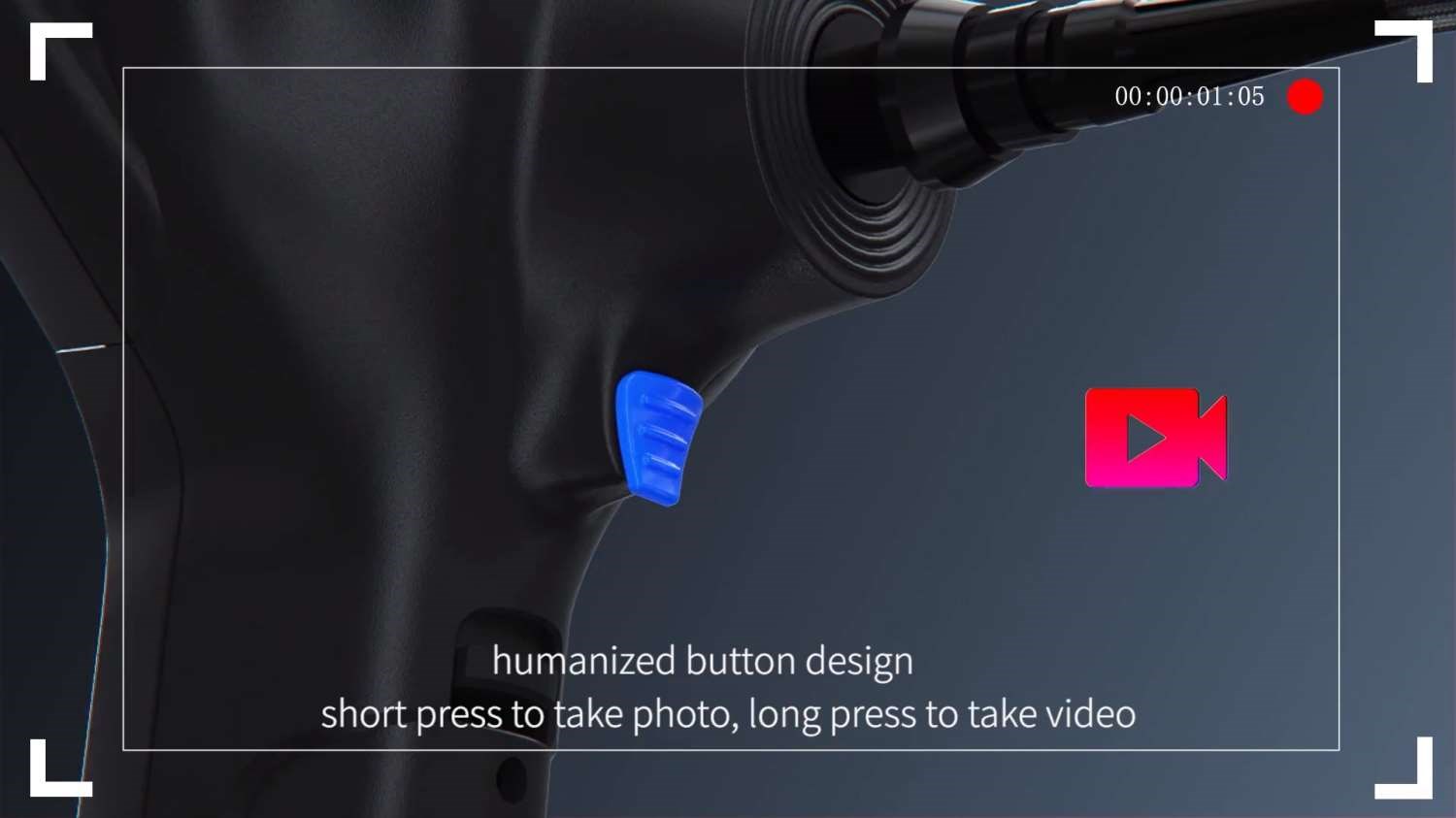

One Click Photo & Video

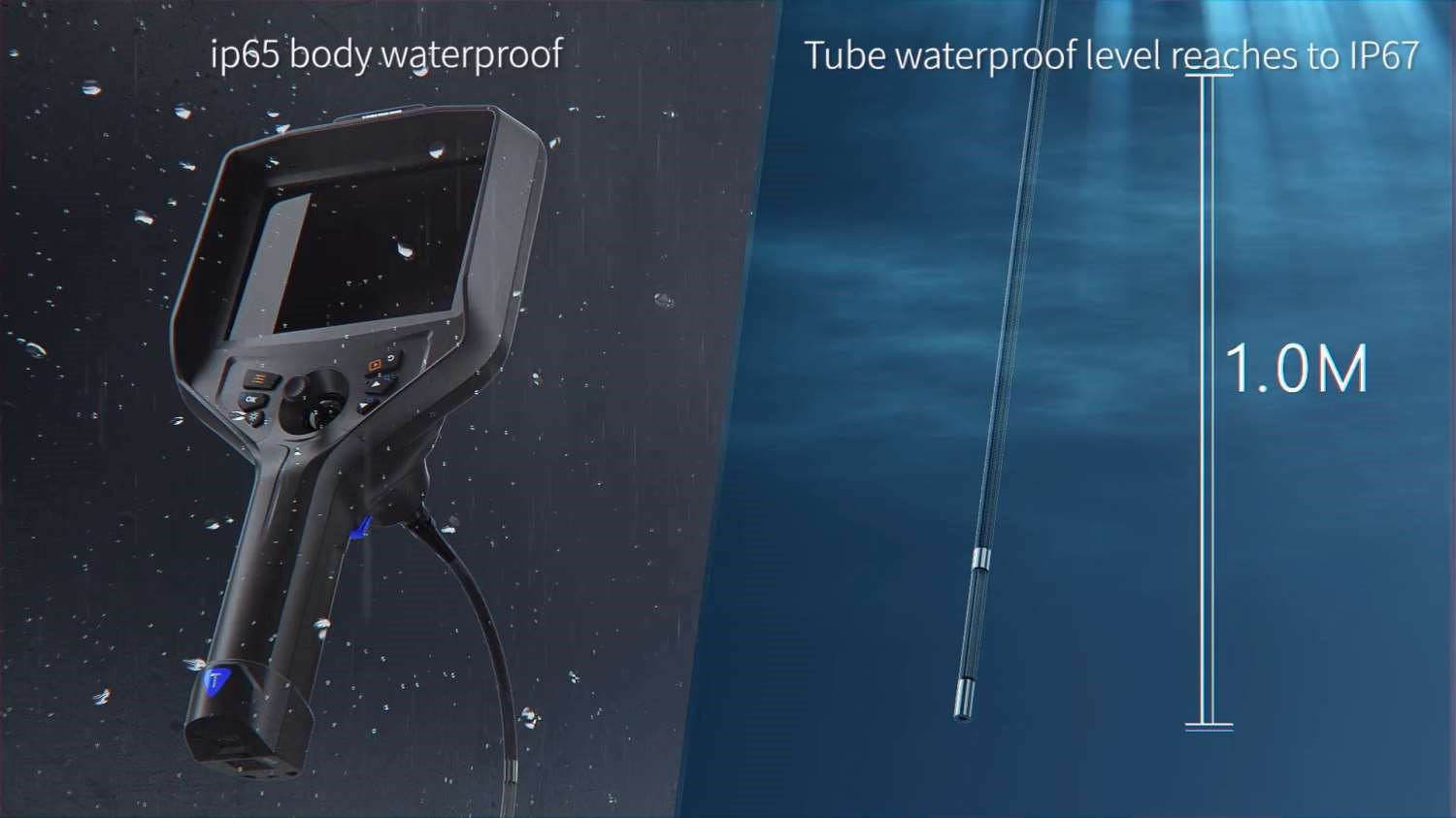

Water Proof Design

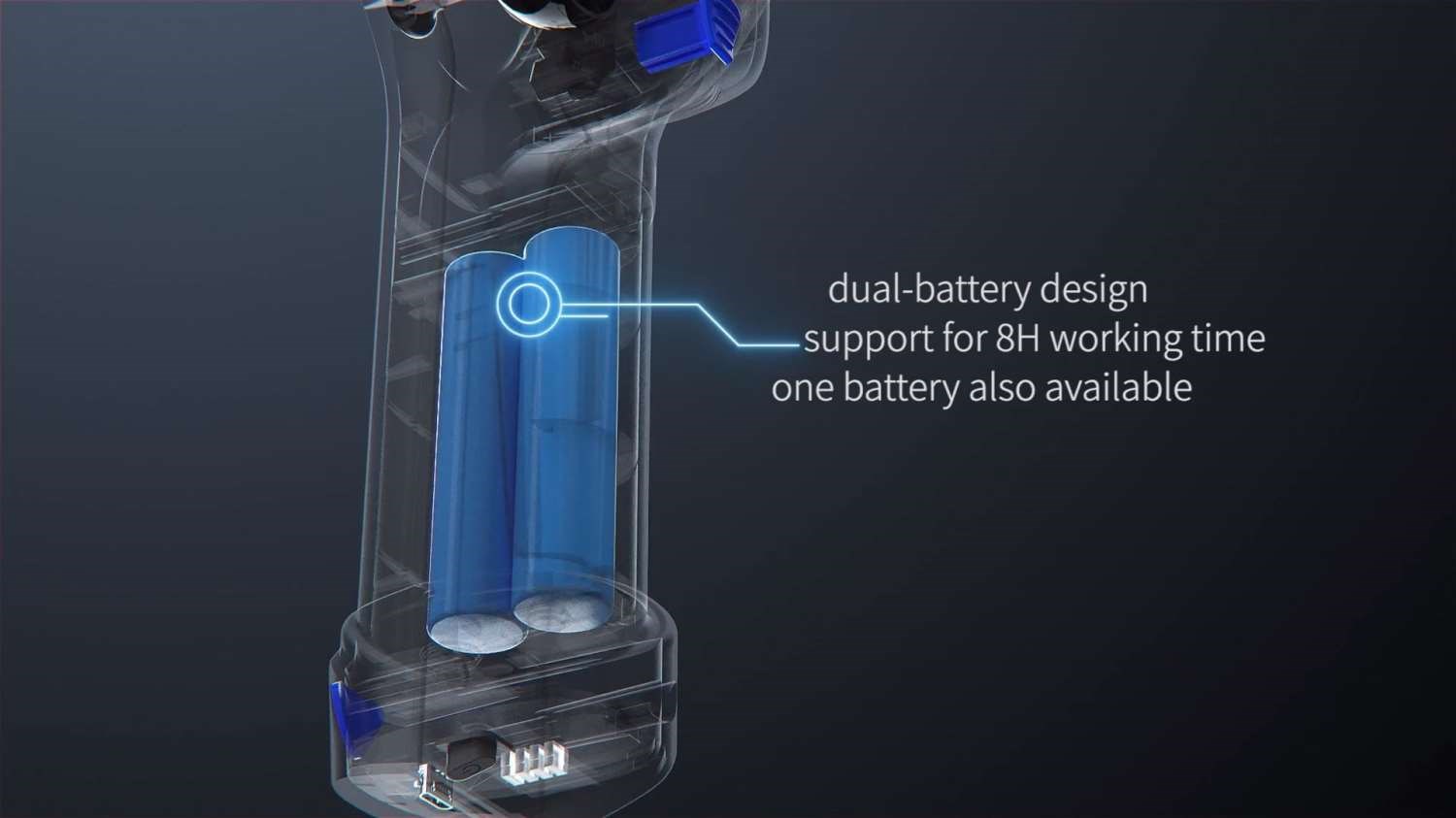

Dual 18650 Lithium-ion Battery Design (Detachable)

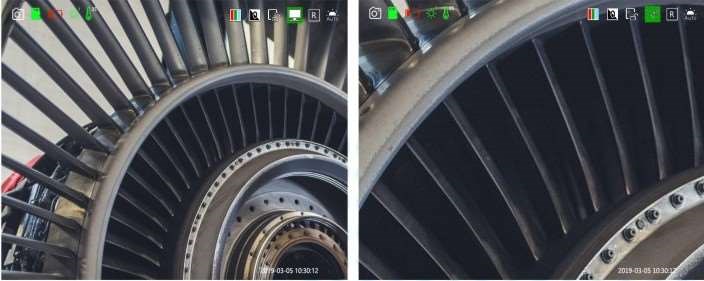

High Image Quliaty Engine Inspeciotn

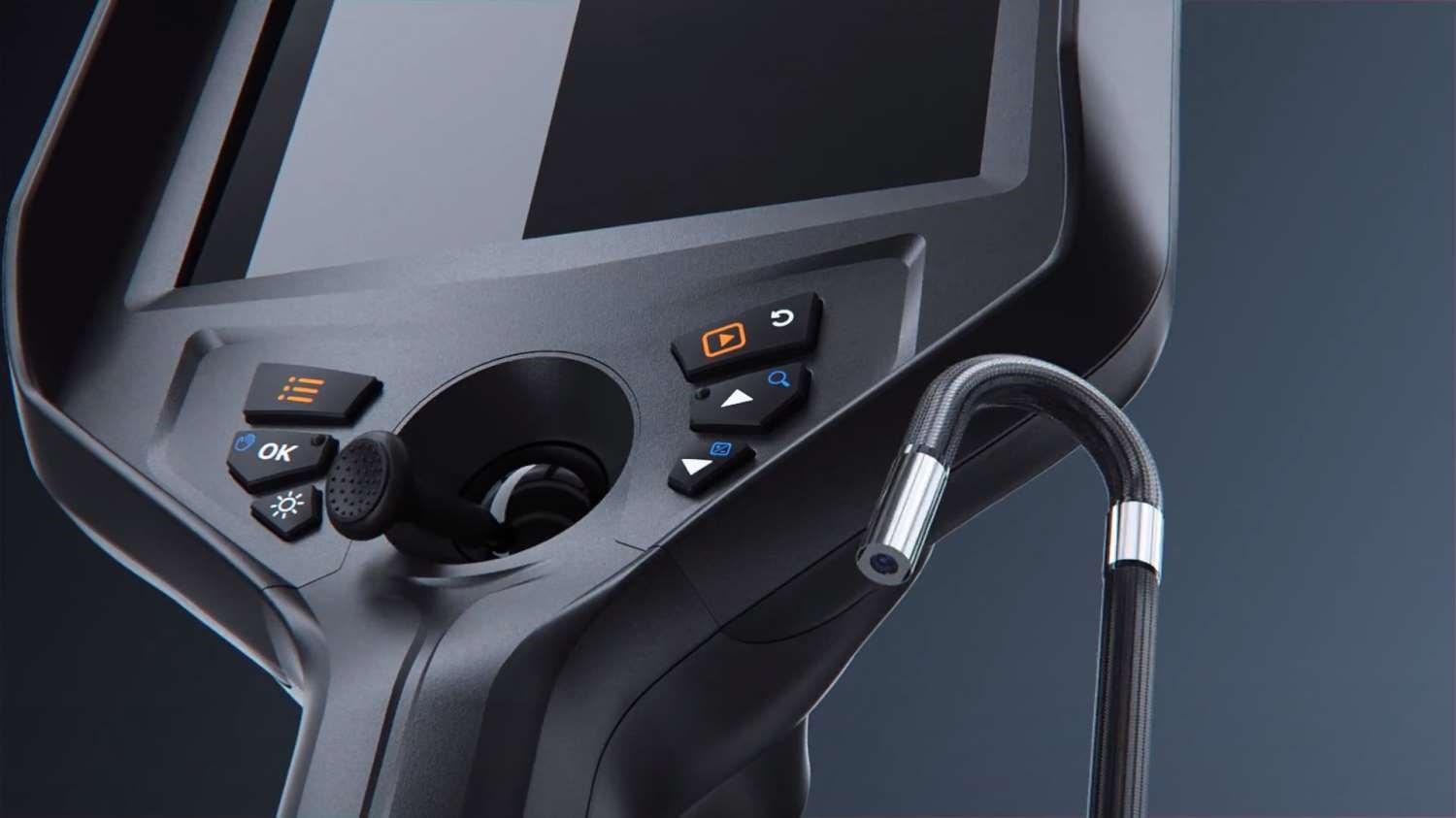

Sensitive 360 Degree Joystick

Super Wide  Angle  of View No Blind Spot

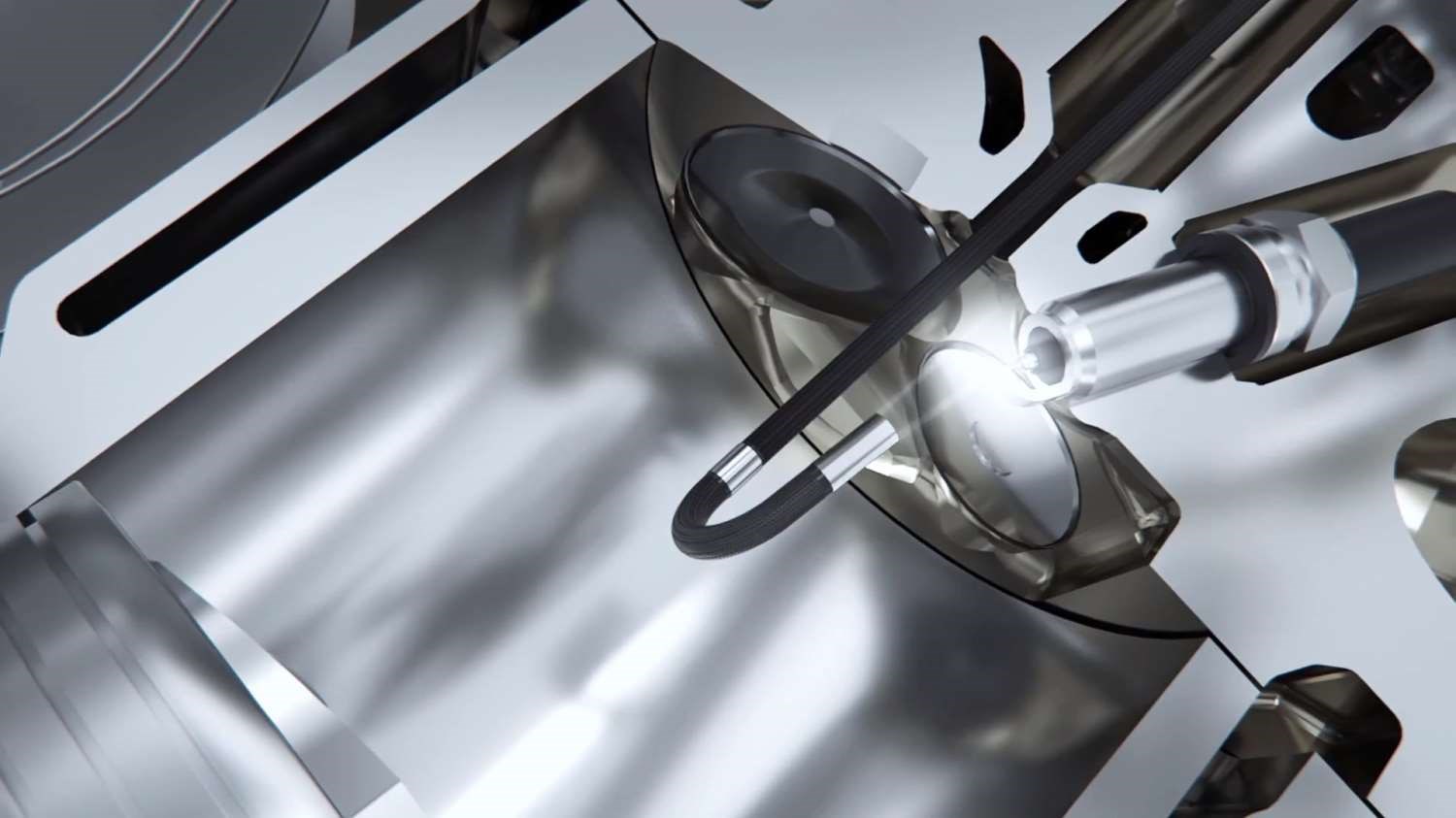

Super Wide Articulation Angle 190 Degree

The probe supports 190 degree bending(maximum) Accurate and flexible

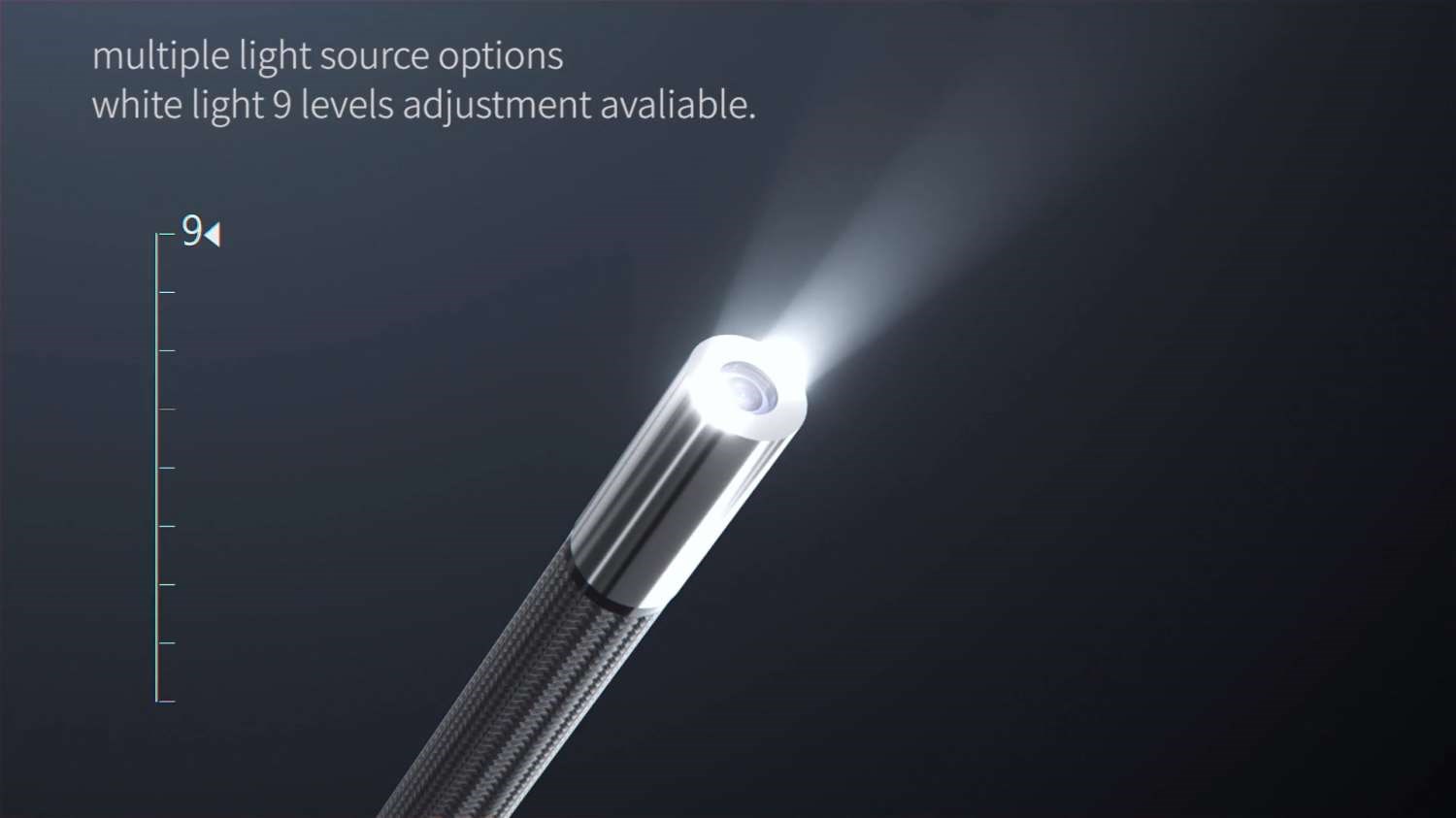

 9 Levels Light Intensity Adjustable

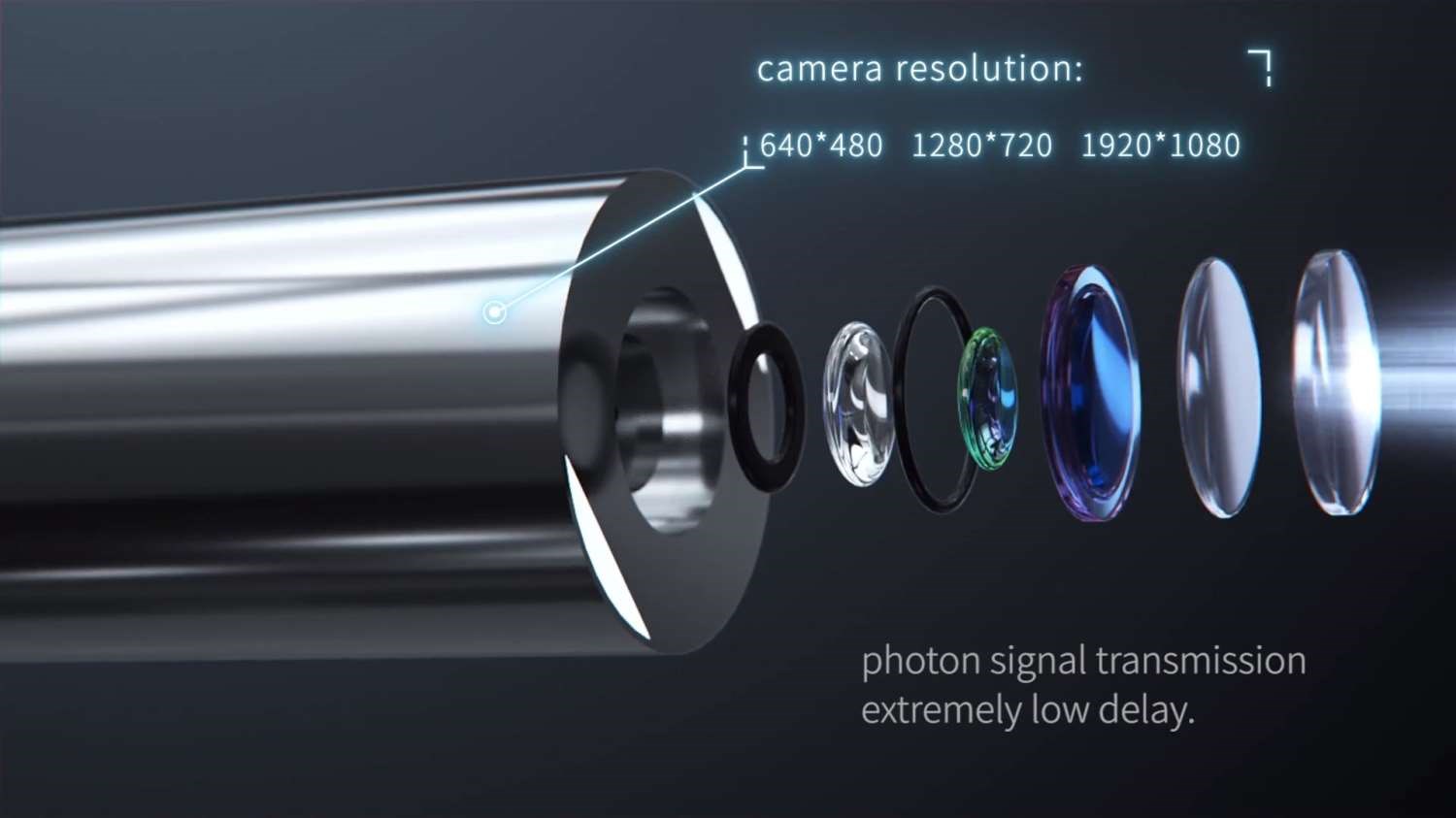

 High Quality Camera Lens

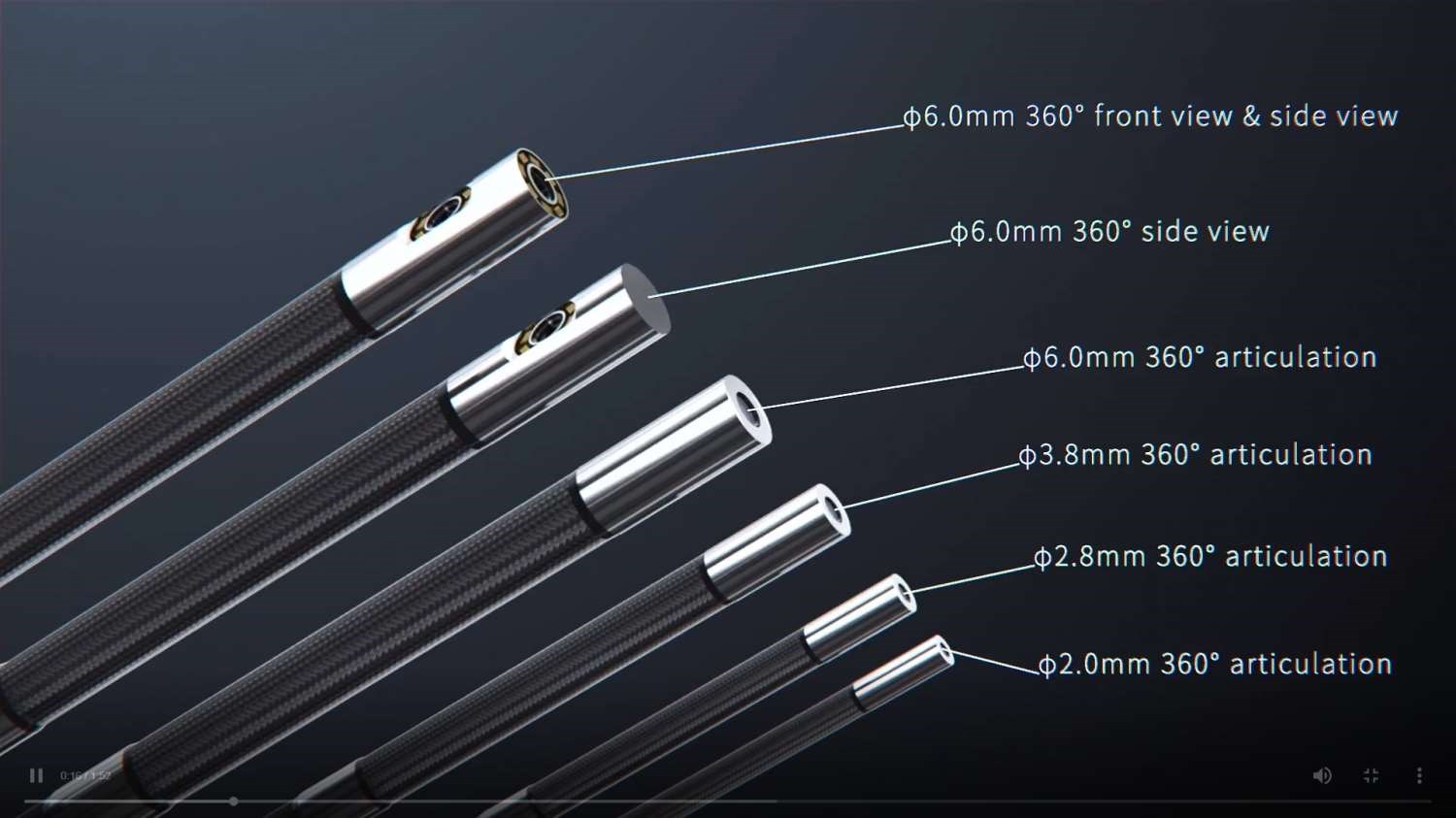

 Different Diameter of Probe for option

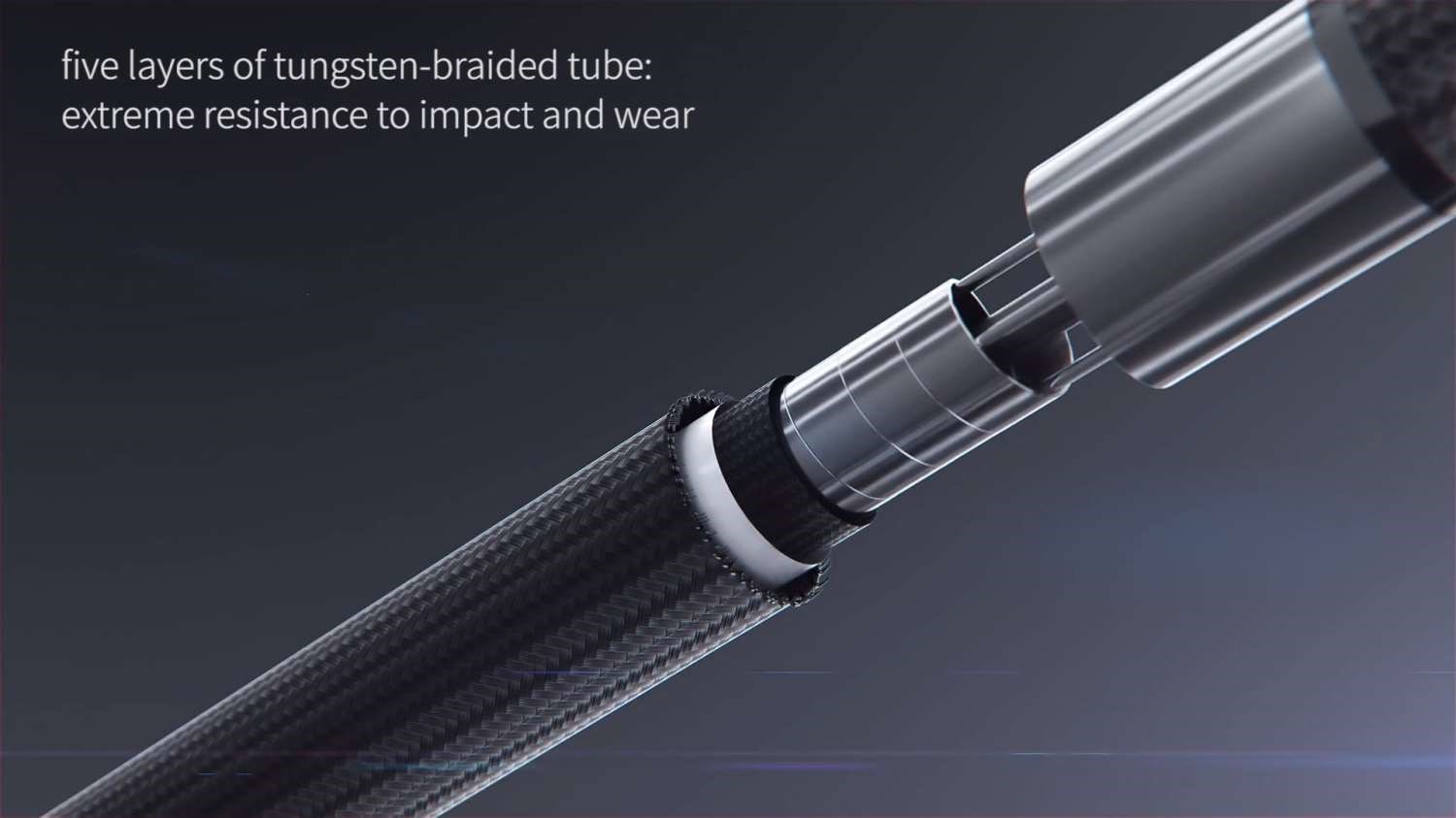

 Five layers of Tungsten-braided Probe


 Certificate



Φ6mm 8m   /  Φ8mm 10m  -  Long Probe 360° Articulation Test & Image Test

Φ3.9mm probe  /  Φ2.8mm probe  -  360° Image Quality Test

Φ3.9mm /  6mm / Φ8mm dual-cameras (front & side view) probe   -  360° Image Quality Test

Φ1.8mm probe   -  2 Way Image Quality Test


Φ6mm Articulation Porbe Image Quality Testing Video From SD


Articulation Radius

Size

 Shock Proof ABS Portable Case

 Image Processing Function

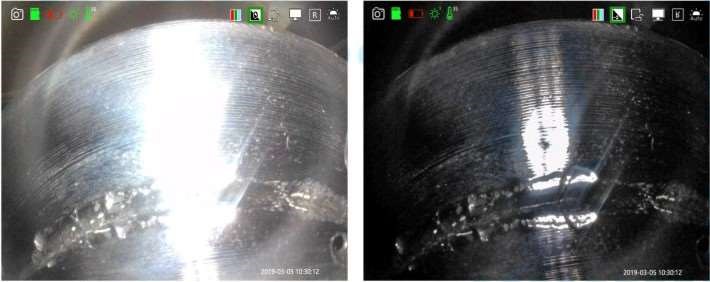

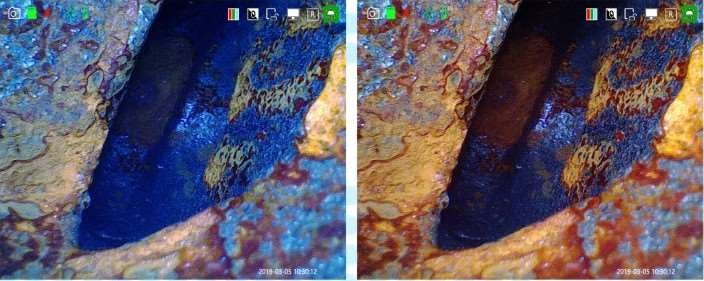

White Balance Adjust

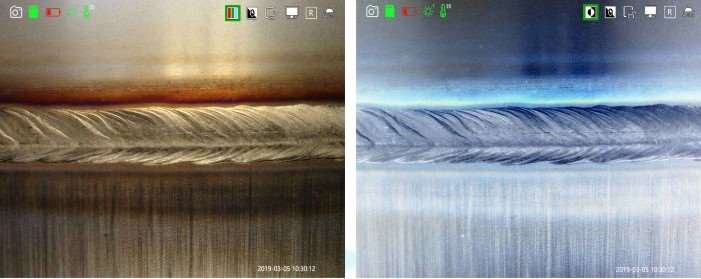

Negative Film Mode

MAX 8X MAGNIFICATION




Measuring Scale on Display

(Best accuracy at 16mm distance.)

Crosshair Scale

Concentric Circle Scal





Detachable Display and Probe
5.1" display is compatible with different probes.





Standard Accessories - Metal Folding Stand







Safety Operating Instruction

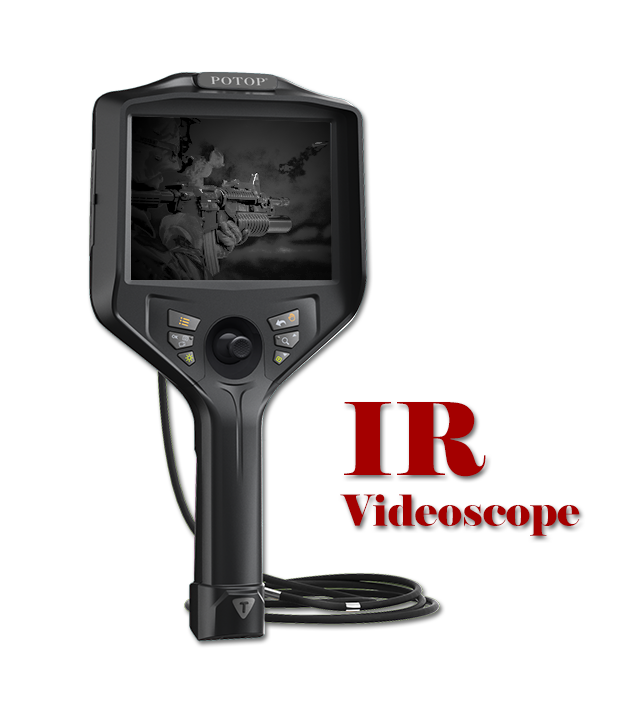

 Infrared IR940nm Light (For Option)



Concentric Circle Scale

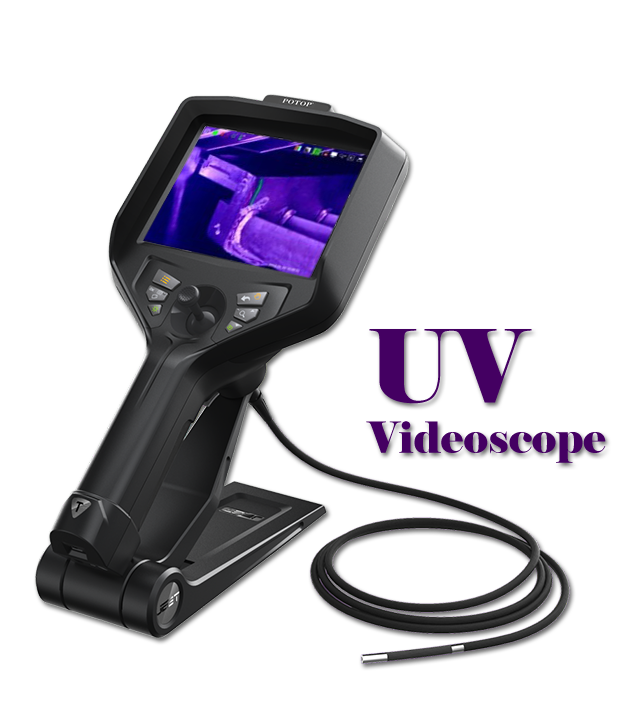

UV Fluorescent Light 365nm (for option)

UV borescopes Application



UV Inspection on Site

High temperature alarm function

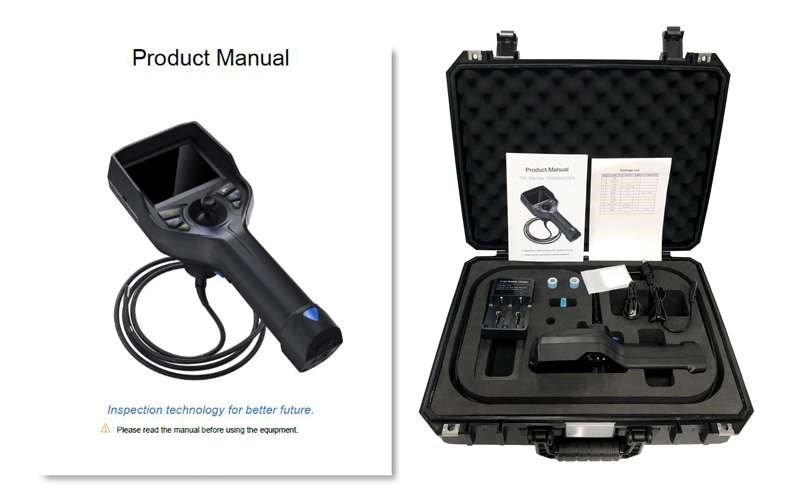

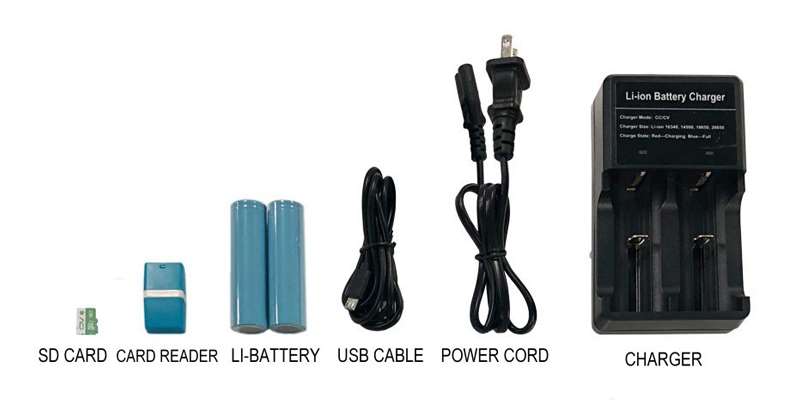

Package & Standard Accessories

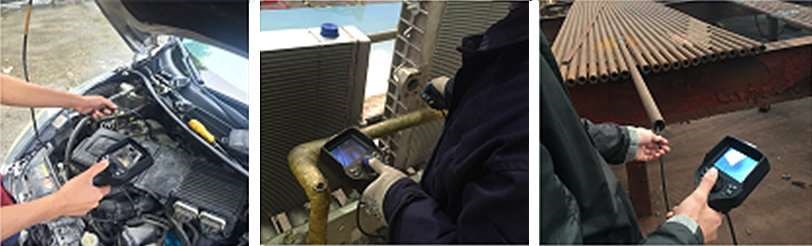

Application



The CT Series 5.1" HD Video Borescope with a Tungsten Probe and 360° articulation features a high-resolution 5.1" interchangeable screen for vivid imaging. It offers one-click photo and video capture with user-friendly button design. The device boasts an IP65 waterproof body and an IP67 waterproof probe, suitable for various environments. Its dual 18650 lithium-ion battery design ensures up to 8 hours of operation.

The borescope provides high image quality for engine inspections and sensitive 360-degree joystick control for precise navigation. It has a super wide angle of view to eliminate blind spots and supports a super wide articulation angle of 190 degrees for comprehensive inspections. The device offers 9 levels of adjustable light intensity and a high-quality camera lens for clear visuals.

It comes with various probe diameter options and five layers of tungsten-braided probe for durability. The borescope is certified and includes a shock-proof ABS portable case for protection. Image processing features like white balance adjust and negative film mode enhance inspection results. It also offers up to 8x magnification and a measuring scale on display for detailed analysis.

The detachable display and probe ensure versatility, and it includes standard accessories like a metal folding stand for convenience. Optional features include an Infrared IR940nm light and UV Fluorescent Light 365nm for specialized inspections, along with a high-temperature alarm function for safety. The CT Series is ideal for various applications, including automotive, aviation, industrial, and security inspections, offering a comprehensive, high-quality visual inspection solution.

 Complete Specifications of CT5 Industrial Video Borescopes

CT5 Series (Interchangeable Display & Probe)

 CT5-IR Series

 CT5-UV Series

Borescope FAQ – Applications, Articulation & Model Selection

The Overview of The Application of Borescopes

There are all kinds of applications of borescopes which approximately include the inspection of aircraft, motors, electricity, industrial machinery, construction and pipeline/drain/sewer. And we will explain more in the following. First of all, in terms of the inspection of aircraft and airframe, borescopes have a role to play. It is because a regular inspection of turbine blades is extremely important to aircraft. To be more precise, maintaining the reliability of the aircraft gas turbine, repairing the wear of components, and examining the contaminated fluids and leaks are what the borescopes can do for us. Secondly, a borescope can also inspect motors, such as engine combustion chambers including some parts as follows, valves, cylinder heads, piston crowns, liners, and water pump weep holes. What’s more, borescopes can also inspect whether water pumps weep holes for coolant leaks and check fuel lines and tanks. Thirdly, borescopes can do more than that, and that is the inspection and maintenance of electricity. For example, the maintenance of nuclear power, water, wind, fire stations of pipelines/turbines and generators are the other applications of borescopes.

On top of that, borescopes can also be used in the inspection of industrial machinery to check the mechanical equipment and manufacturing equipment, surplus material inspection, big generators, heat exchanger. To be honest, the application of borescopes is a perpetual topic. Last but not least, borescopes are widely used in the inspection of construction and pipeline/drain / sewer. In terms of the inspection of construction, steel tubes can not only be used to examine corrosion and fouling, wall and another internal diagnosis, steel rust, bridge expansion joint cracking, etc. but also can be used for tunnel lumen, observation of building models. As for the inspection of pipeline/drain/sewer, borescopes can help check the corrosion and diagnose the blocking drains. Peculiarly, cracks, white spots, sand holes, pores, and slag on the surface of pipeline and welding seam can be checked through borescopes. All in all, the application of borescopes is numerous and we will explain more details in the following paragraphs.

There are many advantages that articulating video borescopes offer.

Most NDT applications have small, limited entrances that open into a much larger space. That is why having an articulating borescope is good for completing internal inspection without missing dead corners.

However, not all applications require articulation. Some inspection applications have narrow diameters through the whole internal chambers, leaving little to no room for articulation. The most common of these applications is a gun barrel inspection, where a straight probe would be a more capable tool (even a cost-effective tool) to finish the job.

When using remote video borescope to internal cracks, articulation is vital to guaranteeing that the full internal surface area is carefully examined.

Like riding a scooter without being able to swing your head right to left, to head down and check your speed meter, or up to mind traffic signs. That similarity is alike to using a non-articulating borescope to examine internal parts. Inspections done with non-articulating borescopes can lead to many details being ignored, some of which can cause unsafe or risk situations.

With advanced articulate inspection devices like the CT-5 video borescope, full internal inspections are accomplished with efficiency and the sureness that comes with being able to check all angles of internal cracks. When CT-5 cameras do not have to be repeatedly manipulated with the purpose of complete inspections, NDT technicians can save valuable working time.
