- 7” (180mm) color LCD TFT display videoscope with high definition 720 x 480 pixel resolution (640 x 480 pixel in storage).
- Universal ball mount and kick stand at the back of controller can set the controller at the best viewing angle and flexible operation.
- Hand-strips and two sets of snapshot/ recording buttons provide better grip for left-handed and right-handed users.
- Sun screen protection is convenient for outdoor inspection.
- Powerful Li-ion battery with long operation time of 8 hours.
- Save your image and videos in SD card.
-
Video Borescope Key Features
PH7 Series
High Definition Video Inspection System
Equipped with screen protection cover
(* Waterproof and Dust-Proof of IP67 for optional camera probe / insertion tube)
Rugged two handheld design and left / right hand control; standup support and tripod mount facility.
SD card storage Mini USB 1.1/2.0 or AV out
Customizable adapters compatible with J series probe.
Package & Standard Accessories
Application
Piping inspection
Automotive
Aerospace
Marine
Plumbing
HVAC
Locksmith
Electrical
Mechanical
Welding
Carpentry

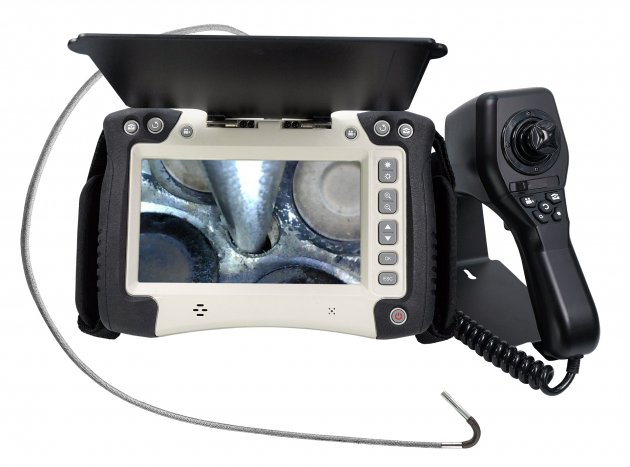

The PH7 Series 7" Video Borescope is a high-definition inspection system featuring a robust tungsten probe with 360° rotation capabilities, offering comprehensive viewing angles. It comes equipped with a screen protection cover and an optional IP67 waterproof and dust-proof camera probe, ensuring stable operation in various environments. This borescope is designed with a rugged dual-handheld structure suitable for left or right-hand control, along with standup support and a tripod mount facility for added flexibility. For data storage, it supports SD card, Mini USB 1.1/2.0, or AV out, and offers customizable adapters compatible with J series probes. Whether for piping inspection, automotive, aerospace, marine, or other professional fields, the PH7 Series provides exceptional inspection performance and convenienc -
PH7 Series Technical Specifications – Video Borescopes Overview
Features Description LCD 7" LCD / 720 x 480 pixels Video Recording 640 x 480 Snapshot 640 x 480 Function Snap-shot while recording/replaying. Video Recording Format MPEG4 / ASF (640 X 480) Power Supply 100V – 240V AC in / 5V DC out Battery Rechargeable Li-Polymer Battery Battery lasting time 8Hrs (battery status in display) Operating Temperature 0 ~ 40 °C Storage Temperature -10 ~ 60 °C Dimensions 260 x 160 x 70 (mm) Weight 1.3 kg -
Complete Specifications of PH7 Industrial Video Borescopes
360° Articulation VGA Probe 6mm (P series)
Model: PHVS-60024_PHVS-60034
Tip Diameter : Ø6mm
Resolution : 640x 480
Porbe Length : 1.5M / 3M
-
Complete Specifications of PH7 Industrial Video Borescopes
Model Tip Dia. Resolution Length Articulation PH7-60024 Ø 6mm 640x480 1.5M 360˚(4Way) PH7-60034 Ø 6mm 640x480 3M 360˚(4Way)
-
Introduction
Video Borescope Key Features
PH7 Series
High Definition Video Inspection System
Equipped with screen protection cover
(* Waterproof and Dust-Proof of IP67 for optional camera probe / insertion tube)
Rugged two handheld design and left / right hand control; standup support and tripod mount facility.
SD card storage Mini USB 1.1/2.0 or AV out
Customizable adapters compatible with J series probe.
Package & Standard Accessories
Application
Piping inspection
Automotive
Aerospace
Marine
Plumbing
HVAC
Locksmith
Electrical
Mechanical
Welding
Carpentry
The PH7 Series 7" Video Borescope is a high-definition inspection system featuring a robust tungsten probe with 360° rotation capabilities, offering comprehensive viewing angles. It comes equipped with a screen protection cover and an optional IP67 waterproof and dust-proof camera probe, ensuring stable operation in various environments. This borescope is designed with a rugged dual-handheld structure suitable for left or right-hand control, along with standup support and a tripod mount facility for added flexibility. For data storage, it supports SD card, Mini USB 1.1/2.0, or AV out, and offers customizable adapters compatible with J series probes. Whether for piping inspection, automotive, aerospace, marine, or other professional fields, the PH7 Series provides exceptional inspection performance and convenienc -
Specification
PH7 Series Technical Specifications – Video Borescopes Overview
Features Description LCD 7" LCD / 720 x 480 pixels Video Recording 640 x 480 Snapshot 640 x 480 Function Snap-shot while recording/replaying. Video Recording Format MPEG4 / ASF (640 X 480) Power Supply 100V – 240V AC in / 5V DC out Battery Rechargeable Li-Polymer Battery Battery lasting time 8Hrs (battery status in display) Operating Temperature 0 ~ 40 °C Storage Temperature -10 ~ 60 °C Dimensions 260 x 160 x 70 (mm) Weight 1.3 kg -
Inspection Probe
Complete Specifications of PH7 Industrial Video Borescopes
360° Articulation VGA Probe 6mm (P series)
Model: PHVS-60024_PHVS-60034
Tip Diameter : Ø6mm
Resolution : 640x 480
Porbe Length : 1.5M / 3M -
Model
Complete Specifications of PH7 Industrial Video Borescopes
Model Tip Dia. Resolution Length Articulation PH7-60024 Ø 6mm 640x480 1.5M 360˚(4Way) PH7-60034 Ø 6mm 640x480 3M 360˚(4Way)
-
