• Introduction

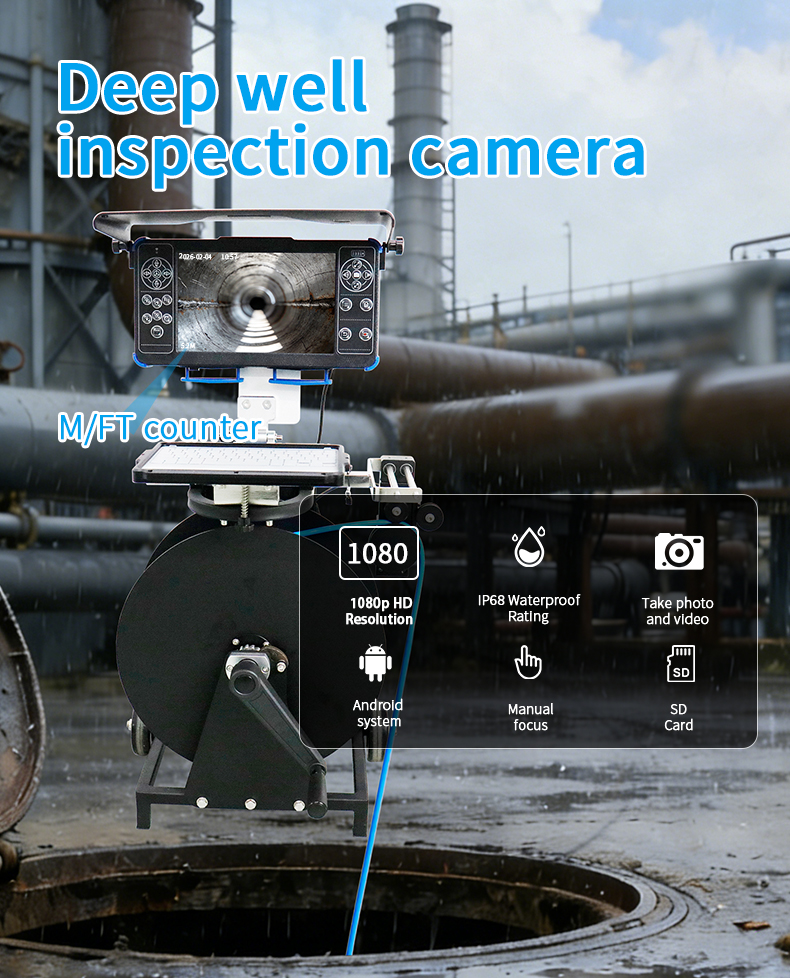

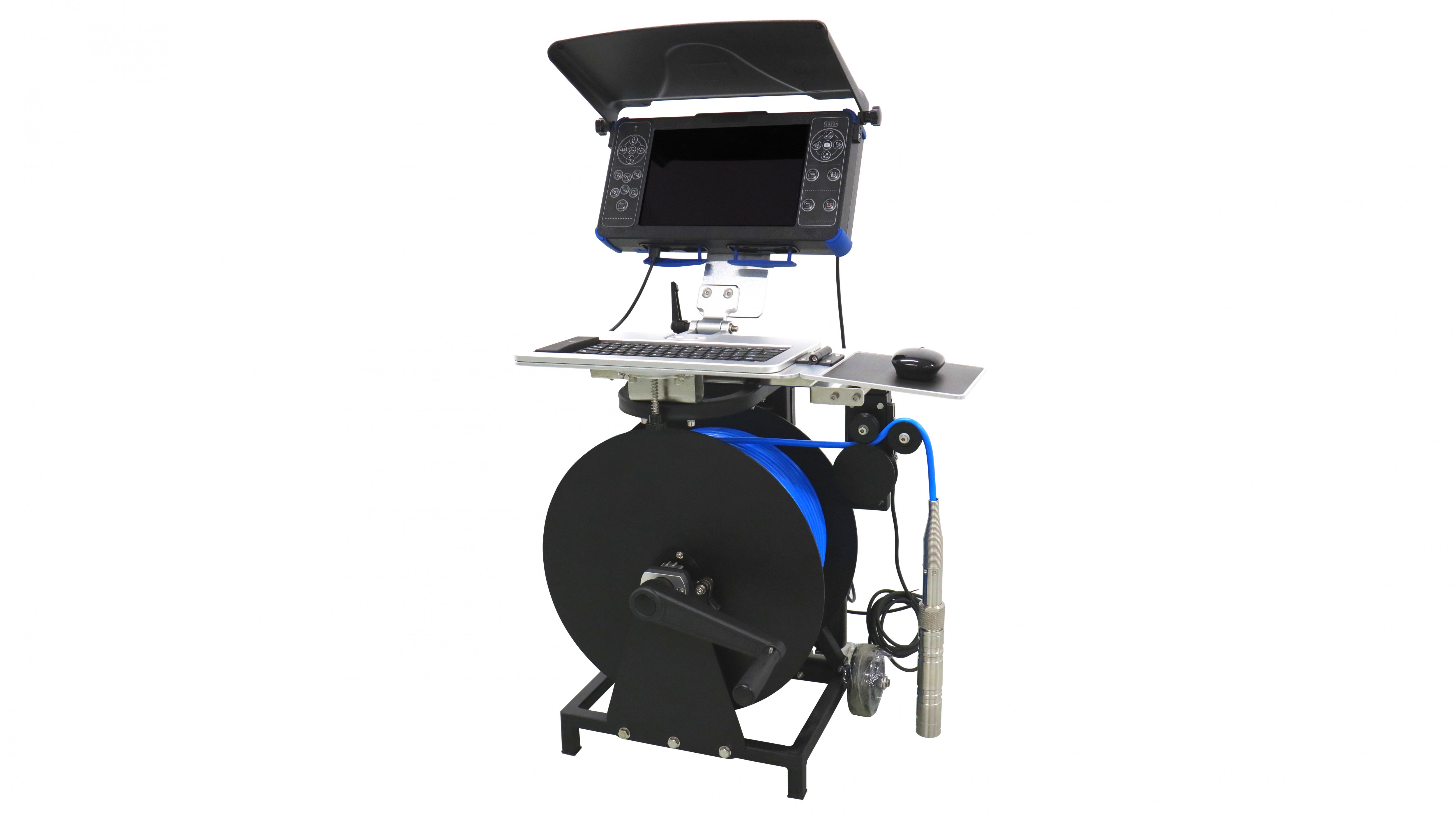

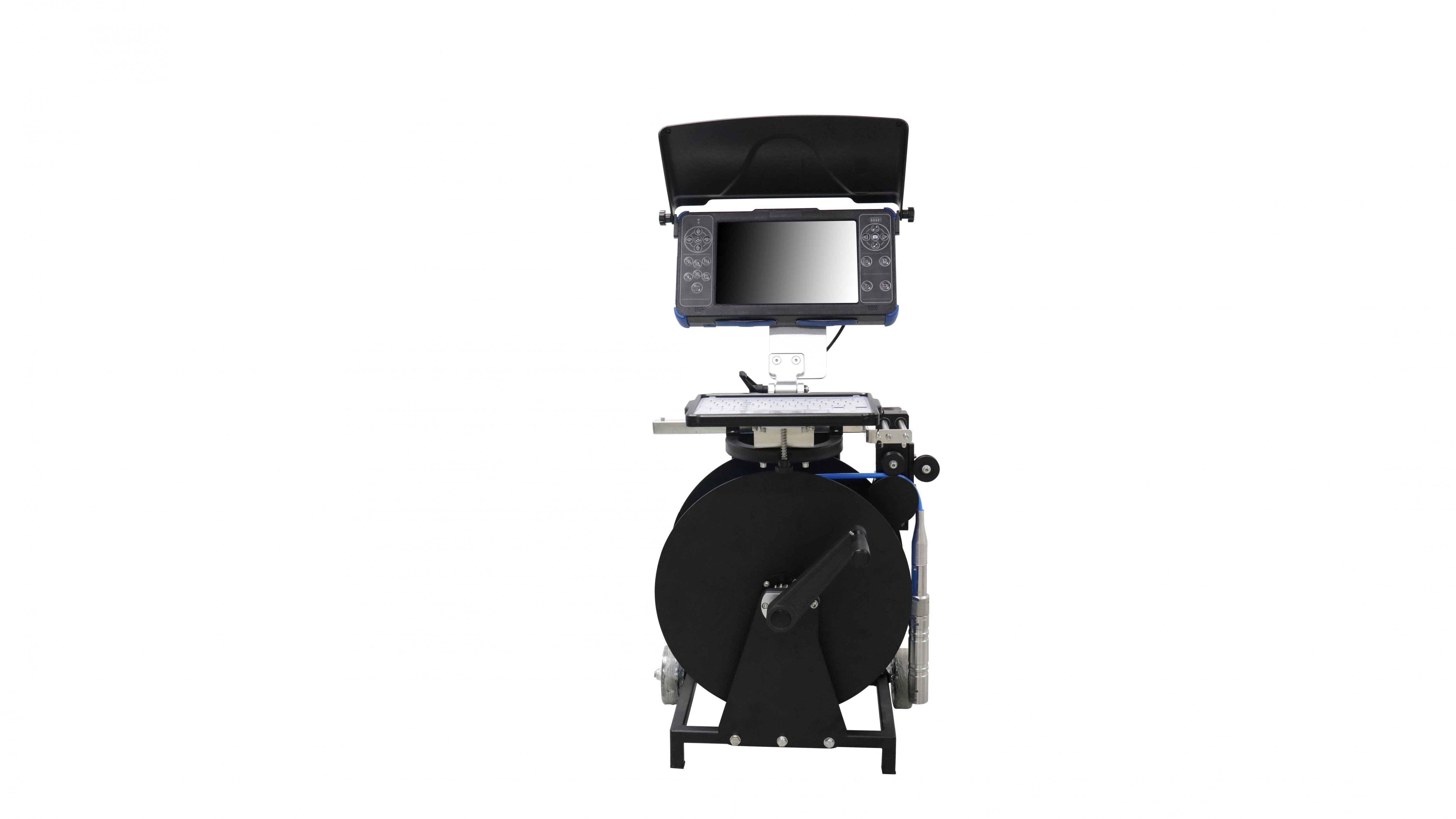

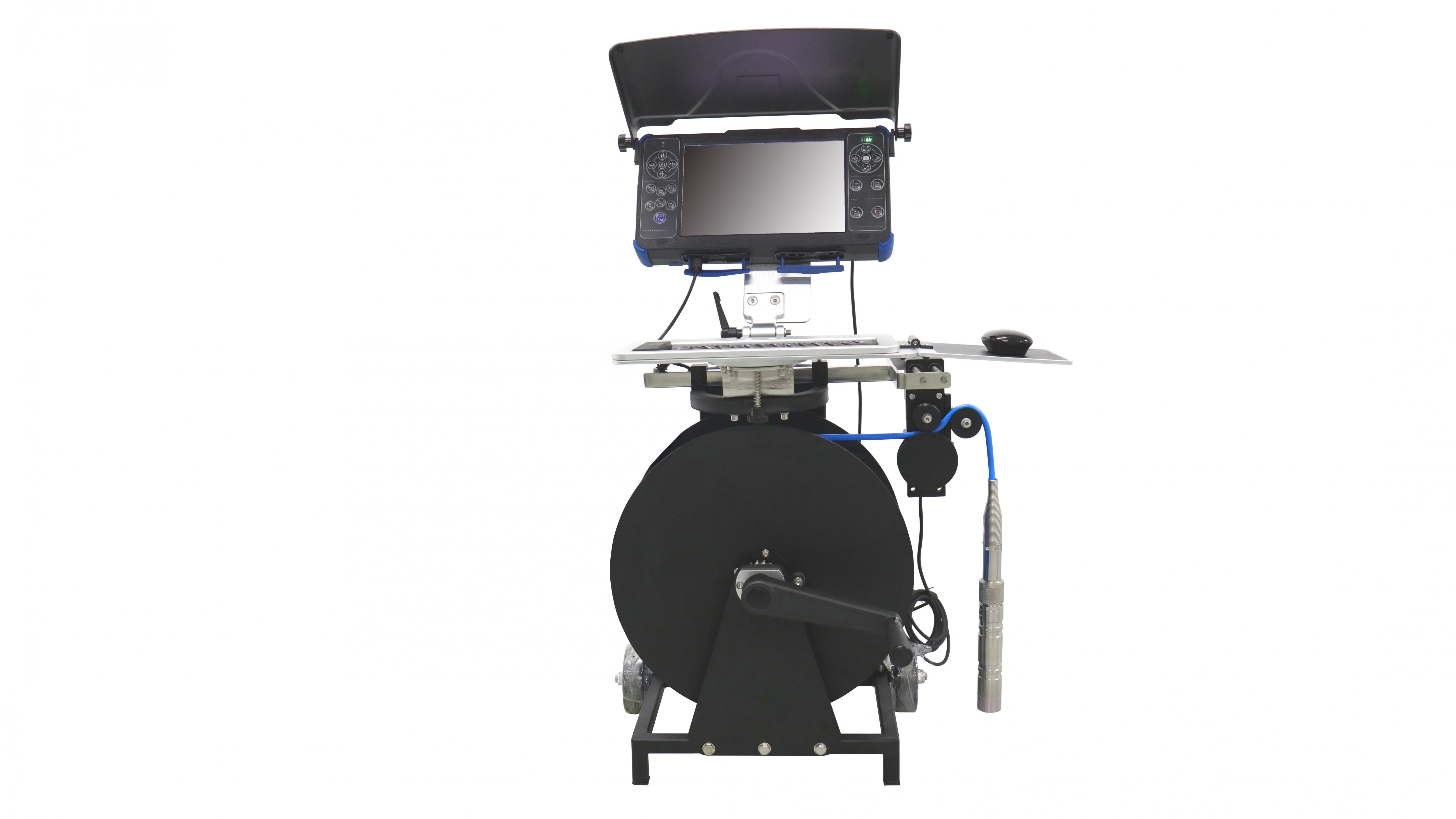

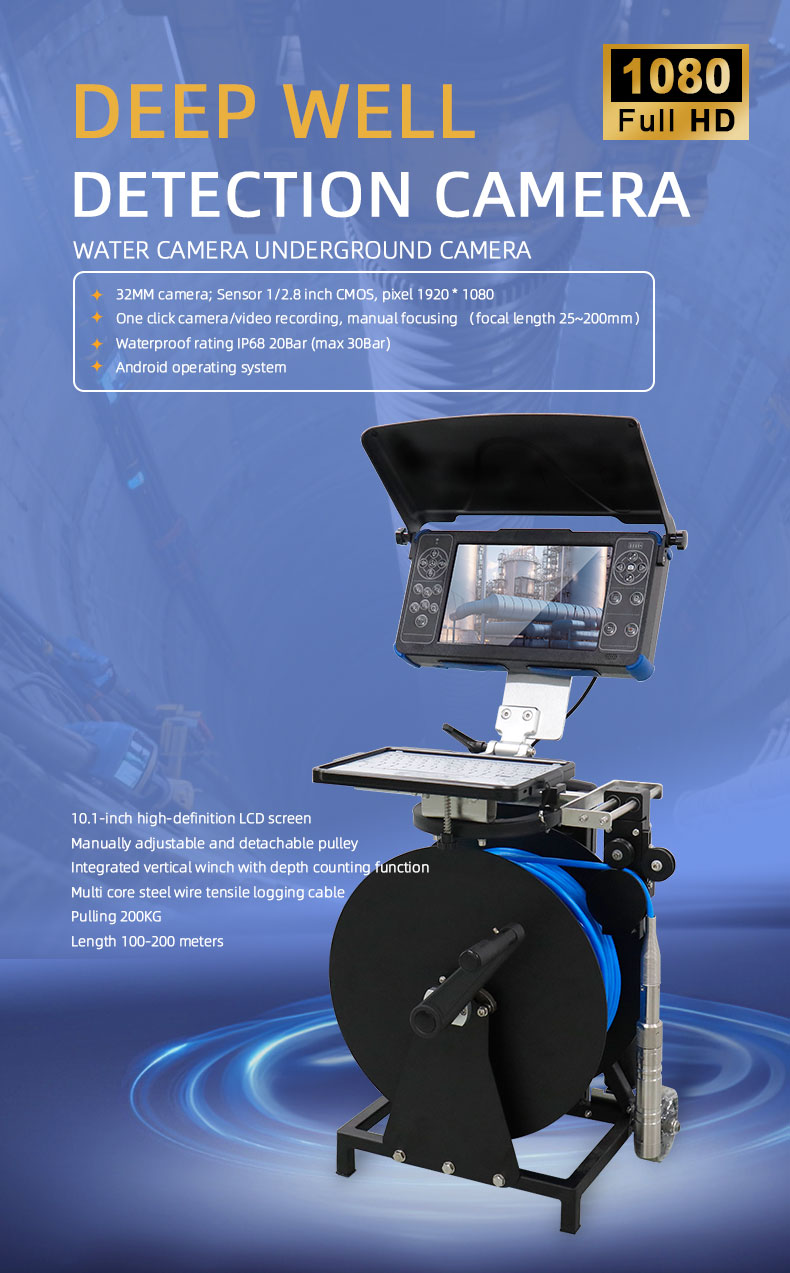

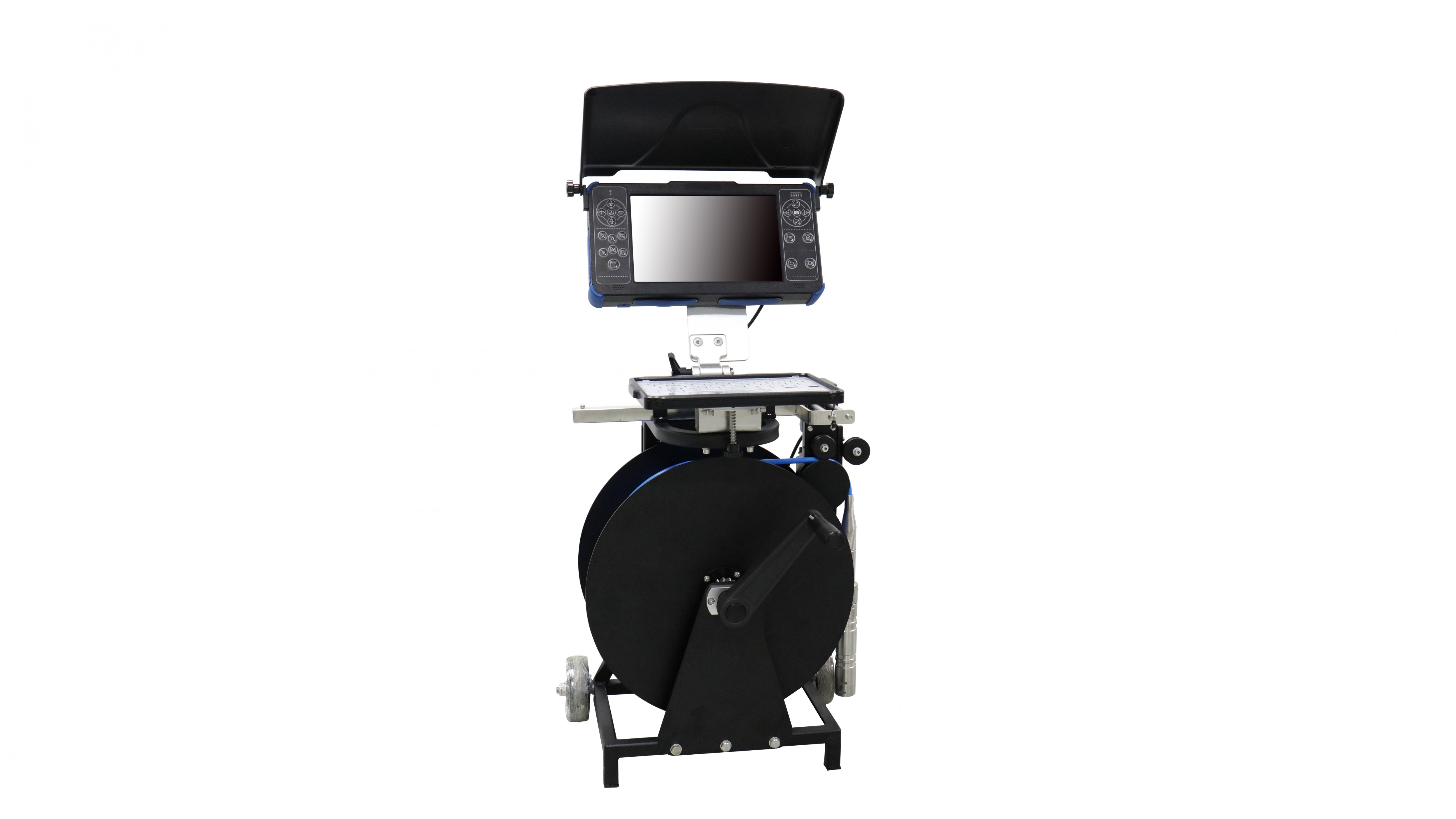

  SJ Series 10" HD screen Deep Well inspection Borehole Downhole Camera

  SJ-D32  ø32mm Camera

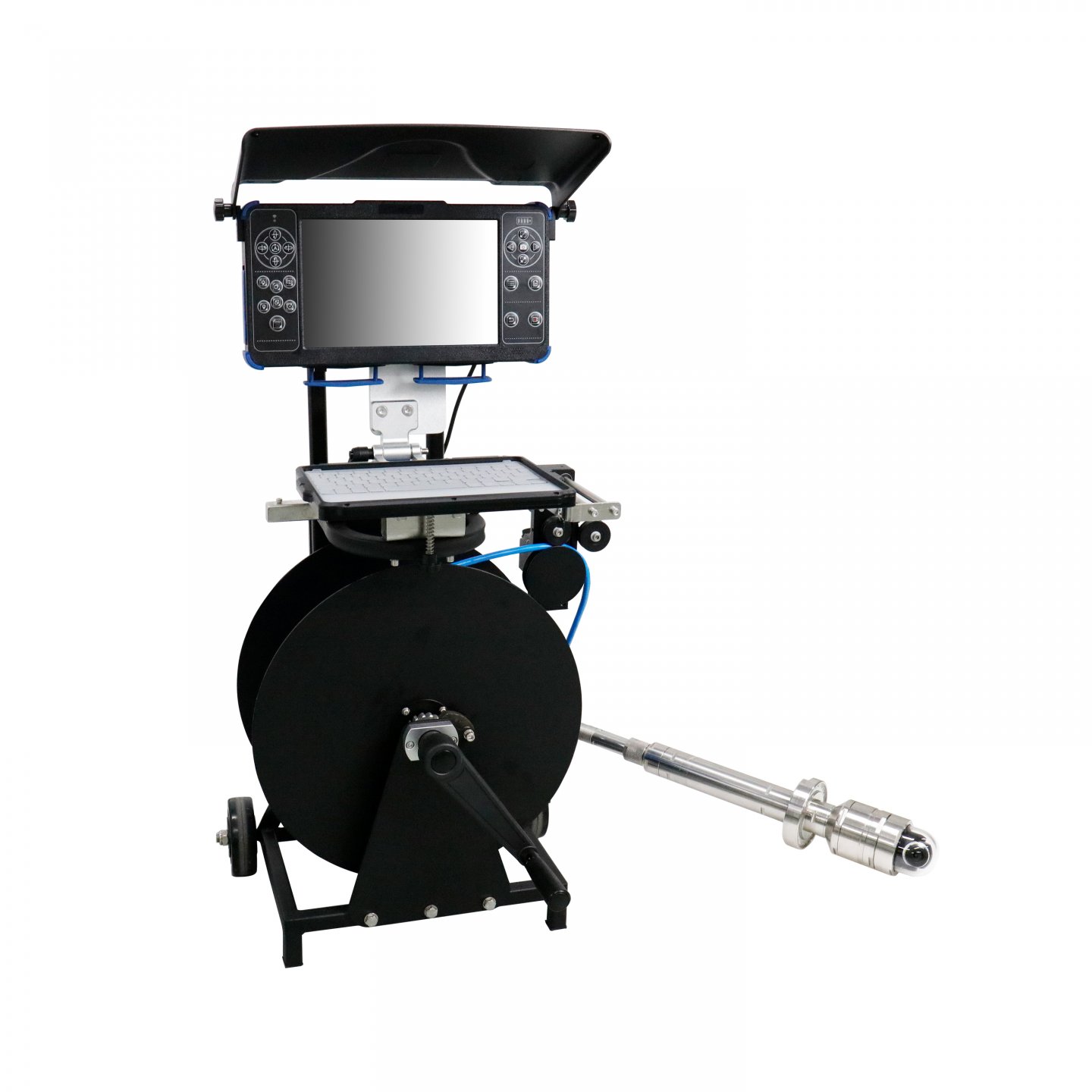

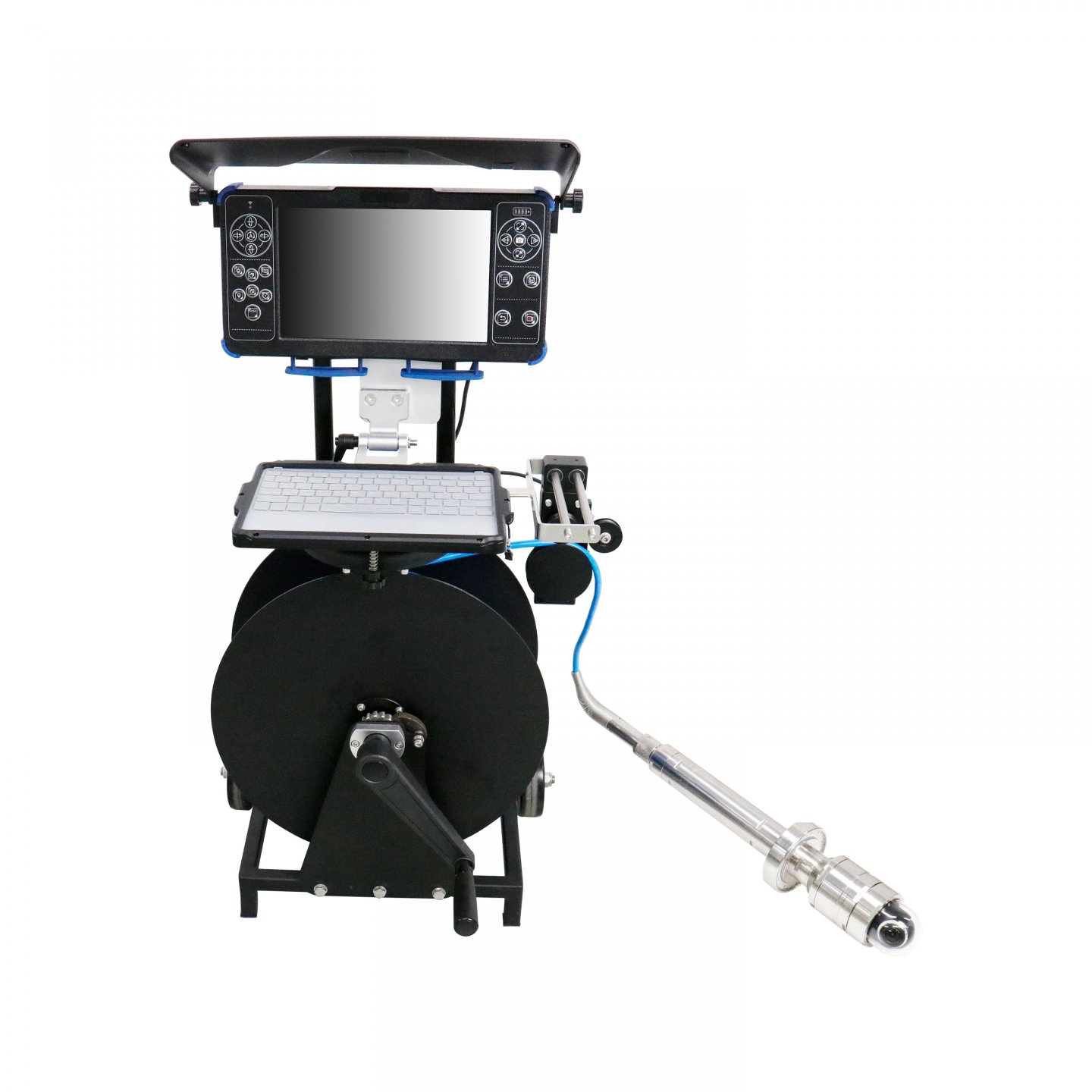

  SJ-D70  ø70mm Camera

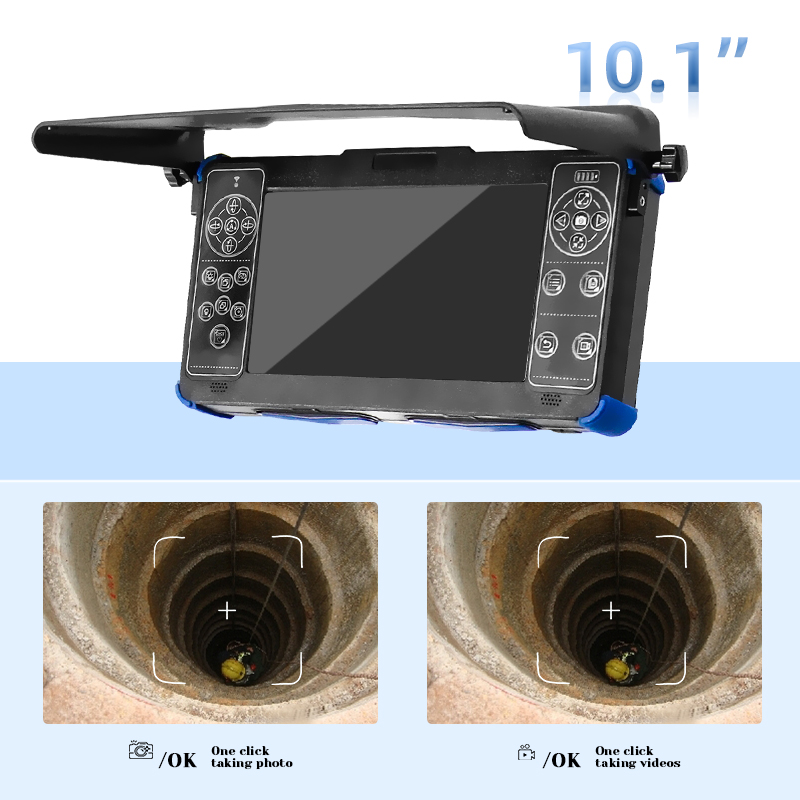

  10" Full HD LCD Screen

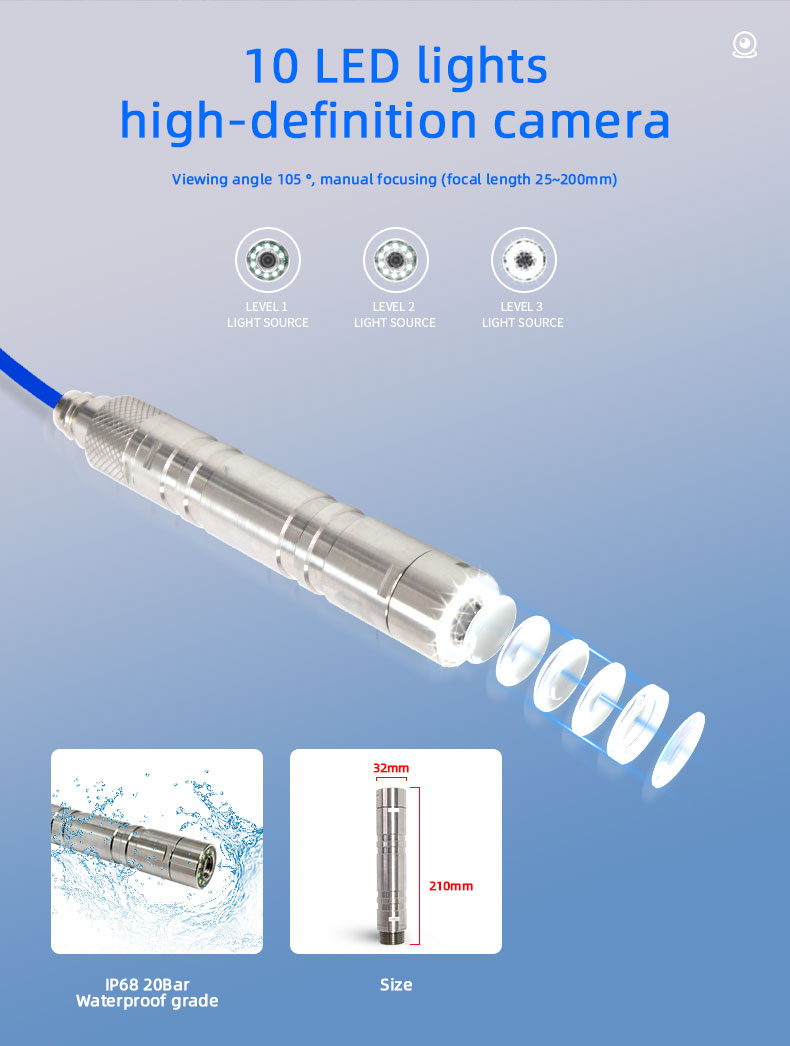

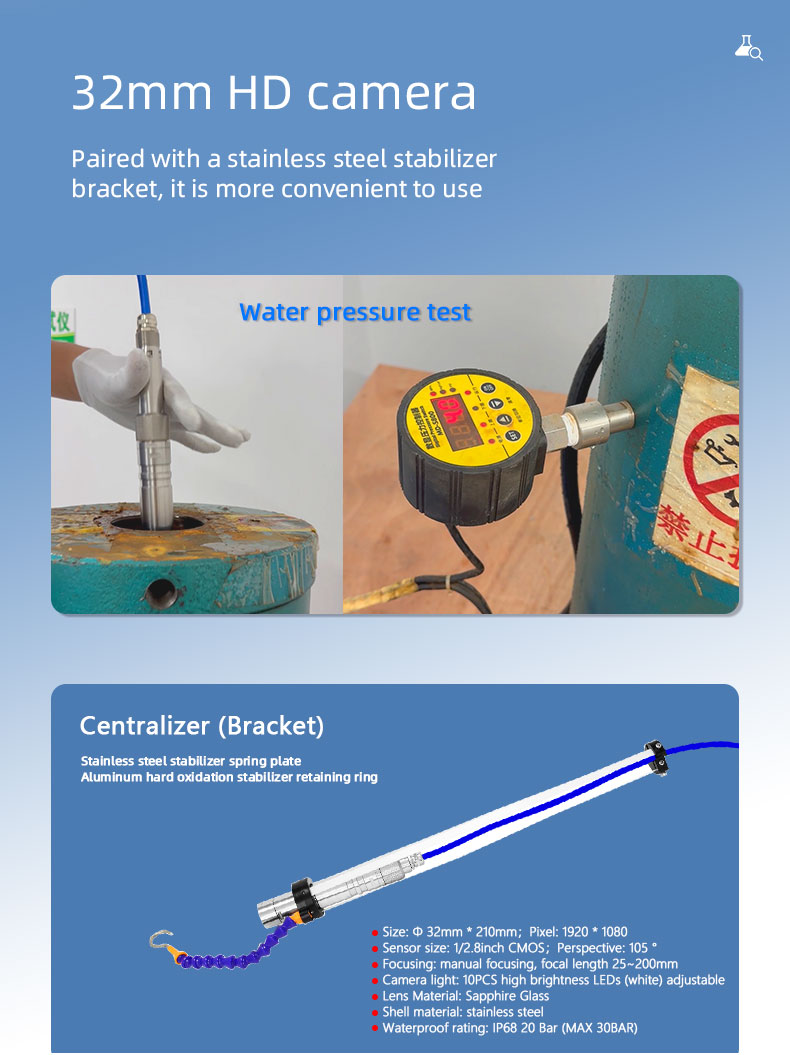

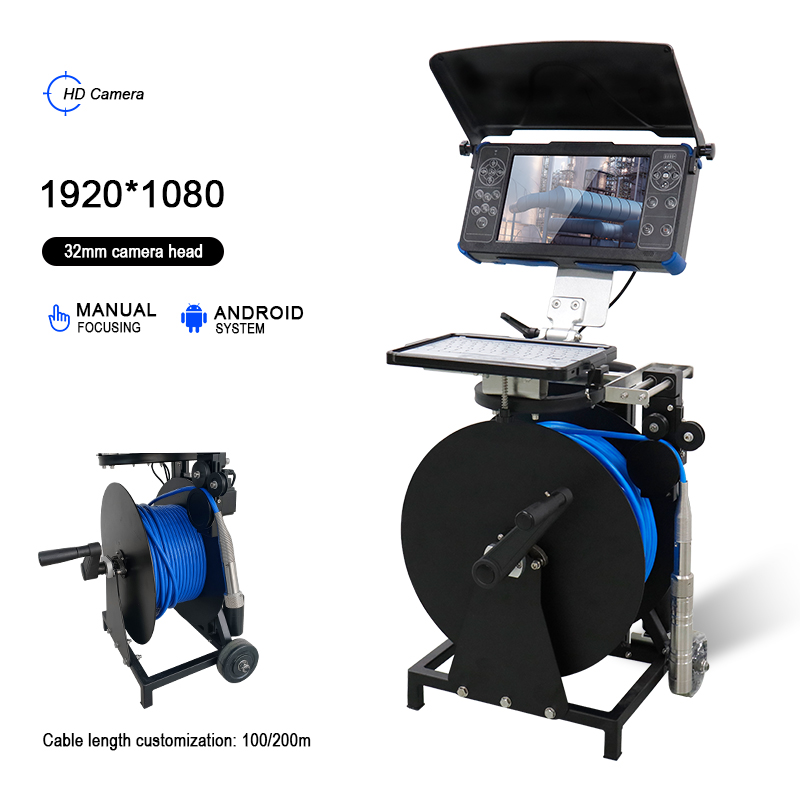

  32mm HD camera

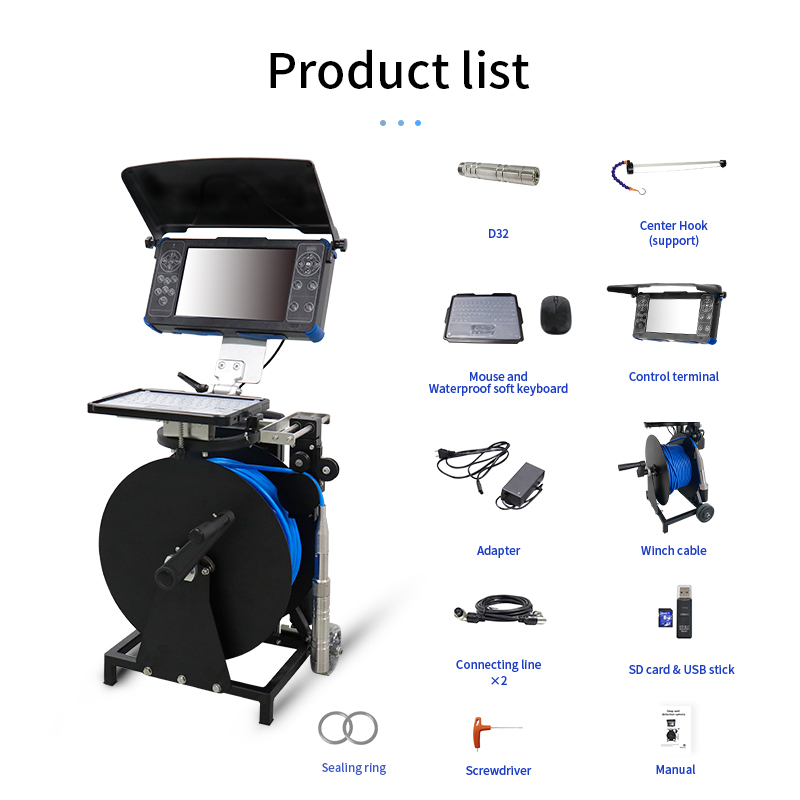

  Product list

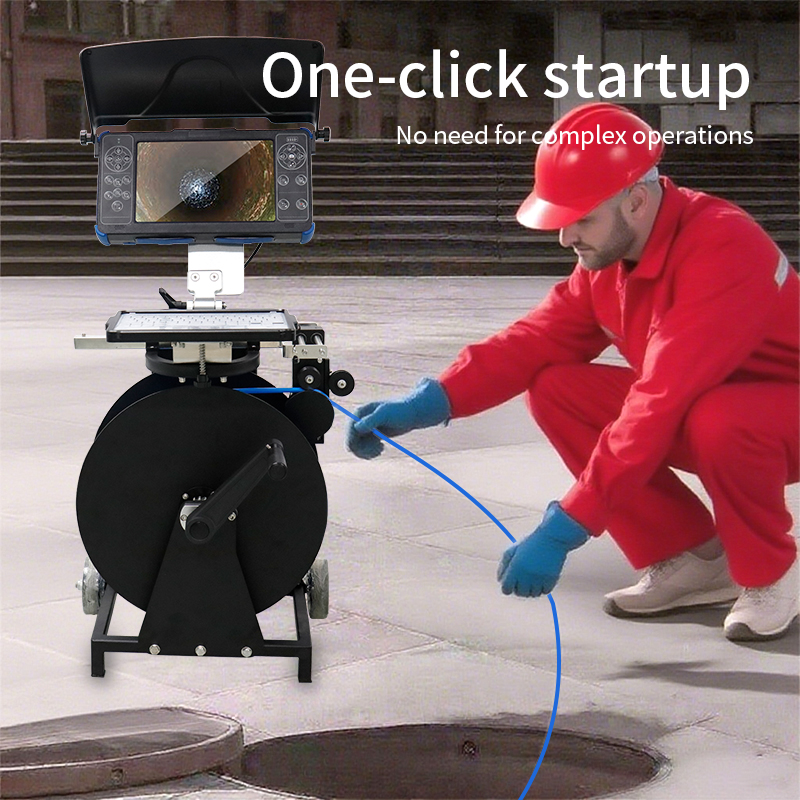

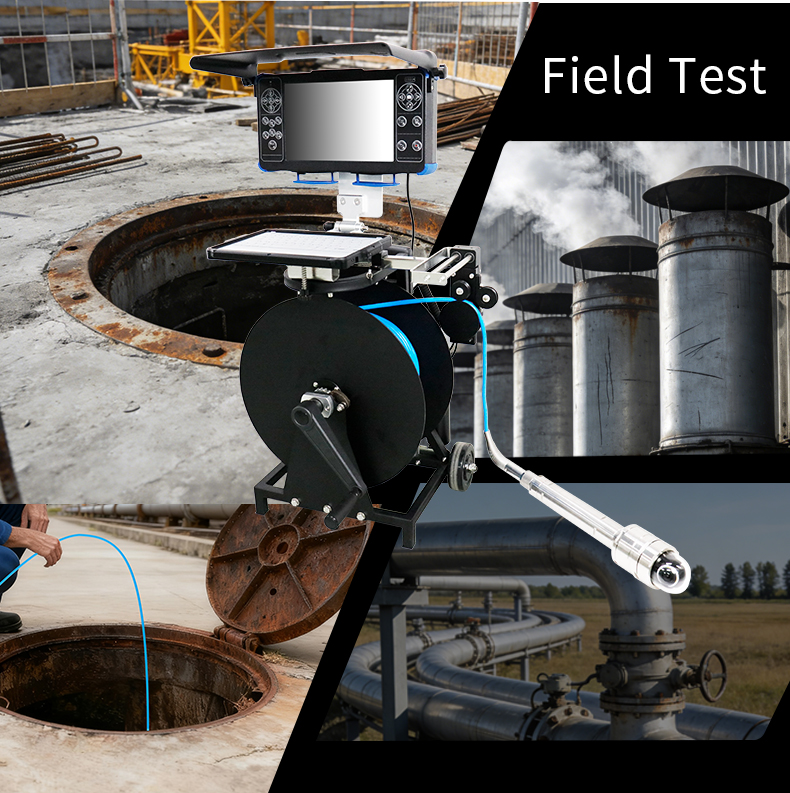

  Application Scenarios





• Specification

  Series	SJ10
  Prob​e Diameter(mm)	∅32mm	∅70mm
  Viewing Direction	Front view	Pan 360°/ Tilt 180°
  Camera Pixels	1920*1080
  D.O.F.	manual focus
  F.O.V.	105°
  Image Resolution	JPEG 1920*1080
  Video Resolution	AVI 1920*1080
  Light Source	10 front LED brightness light beads	4 front LED lights and 8 rear LED lights
  Probe Length	200M   Probe Diameter: 8.2mm

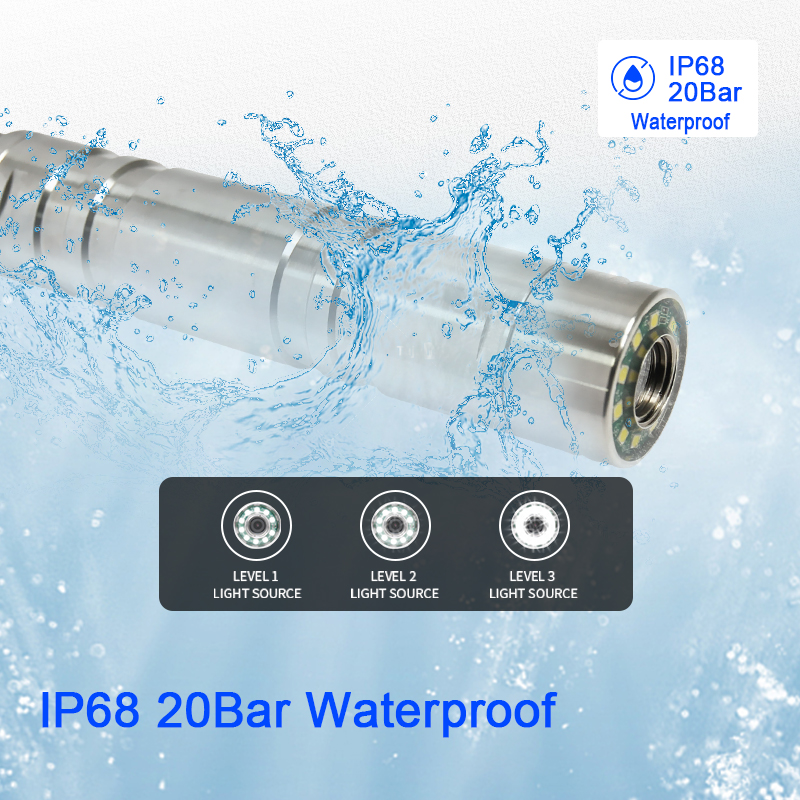

  Waterproof	Cable & Camera: IP68
  Water Pressure Resistance	20 bar
  Display	10.1 inch HD LCD screen
  Display Resolution	1280*800
  Working Time	≥4h
  Power Charge	input AC 100~240V output DC 13.5V   5A charger.

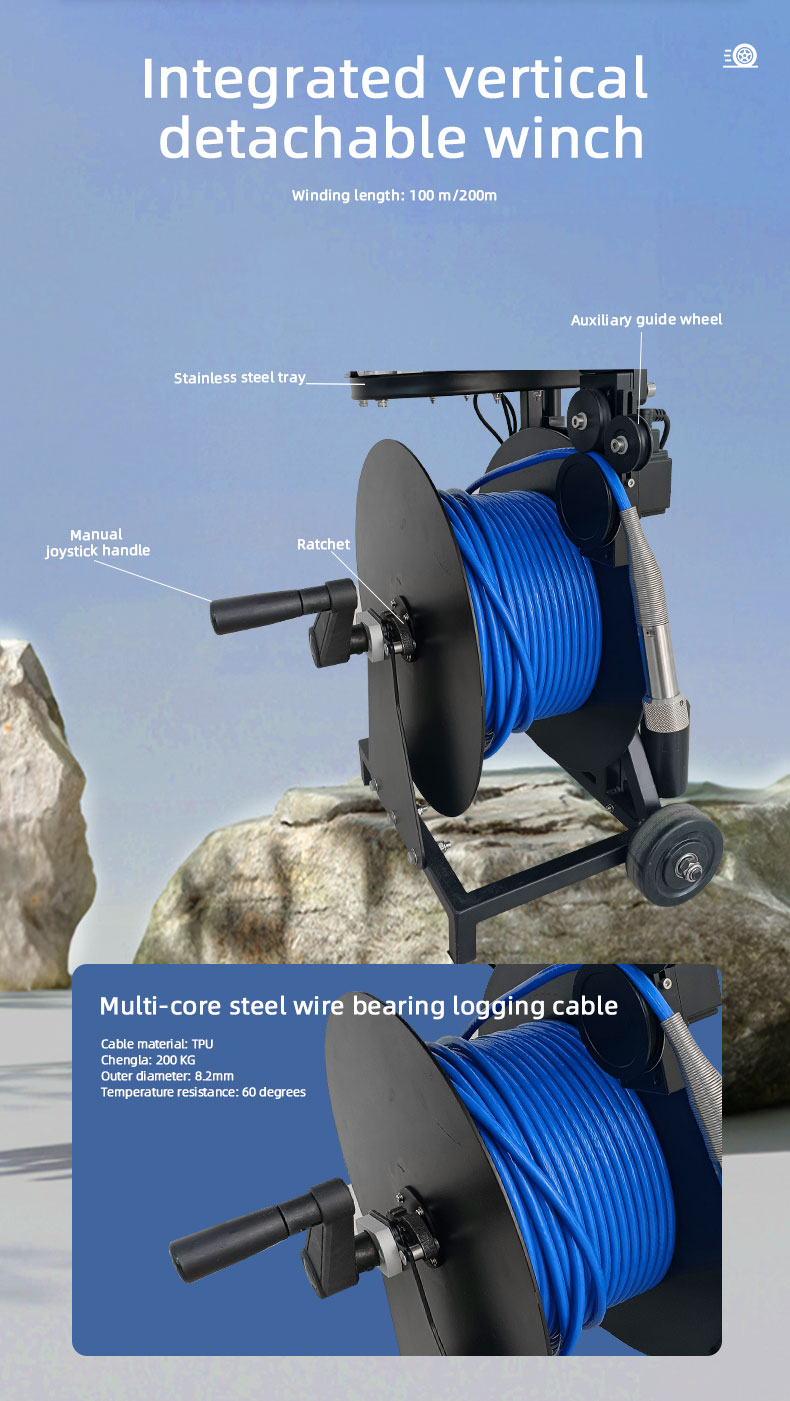

  Videoscope Size	reel & cable size: 550(L)*350(W)*615(H)mm
  Software Function	Video/audio recording and image capture、Counter and text、Zoom function (x8 levels)
  Language	English, French, German, Italian, Spanish, Czech, Dutch
  Standard Accessory	Camera, Center hook, Control terminal, Winch cable, Main body, Mouse and Keyboard,Connecting line *2, SD card & USB stick, Skid, Screwdriver, Sealling ring, Manual
  Option
  Portable Case	Engineering plastic
  Working Temperature	-10℃~50℃ ≤95%RH; storage environment-20℃~70℃ (-4℉~158℉) ≤95%RH.
  Package	Package: 82*51*45cm  GW: 40KGS(30M)/45KGS(200M)


• Model

  SJ10 Series

  Model	Display	Tip Dia.	Length	Rotation	Camera Res.
  SJ10-3230	10.1"	Ø32mm	30M	Full HD Camera	1920*1080
  SJ10-3260	10.1"	Ø32mm	60M	Full HD Camera	1920*1080
  SJ10-3280	10.1"	Ø32mm	80M	Full HD Camera	1920*1080
  SJ10-32100	10.1"	Ø32mm	100M	Full HD Camera	1920*1080
  SJ10-32120	10.1"	Ø32mm	120M	Full HD Camera	1920*1080
  SJ10-32150	10.1"	Ø32mm	150M	Full HD Camera	1920*1080
  SJ10-32200	10.1"	Ø32mm	200M	Full HD Camera	1920*1080
  SJ10-7030	10.1"	Ø70mm	30M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-7060	10.1"	Ø70mm	60M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-7080	10.1"	Ø70mm	80M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-70100	10.1"	Ø70mm	100M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-70120	10.1"	Ø70mm	120M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-70150	10.1"	Ø70mm	150M	Pan360° / Tilt180° Camera	1920*1080
  SJ10-70200	10.1"	Ø70mm	200M	Pan360° / Tilt180° Camera	1920*1080
