• Introduction

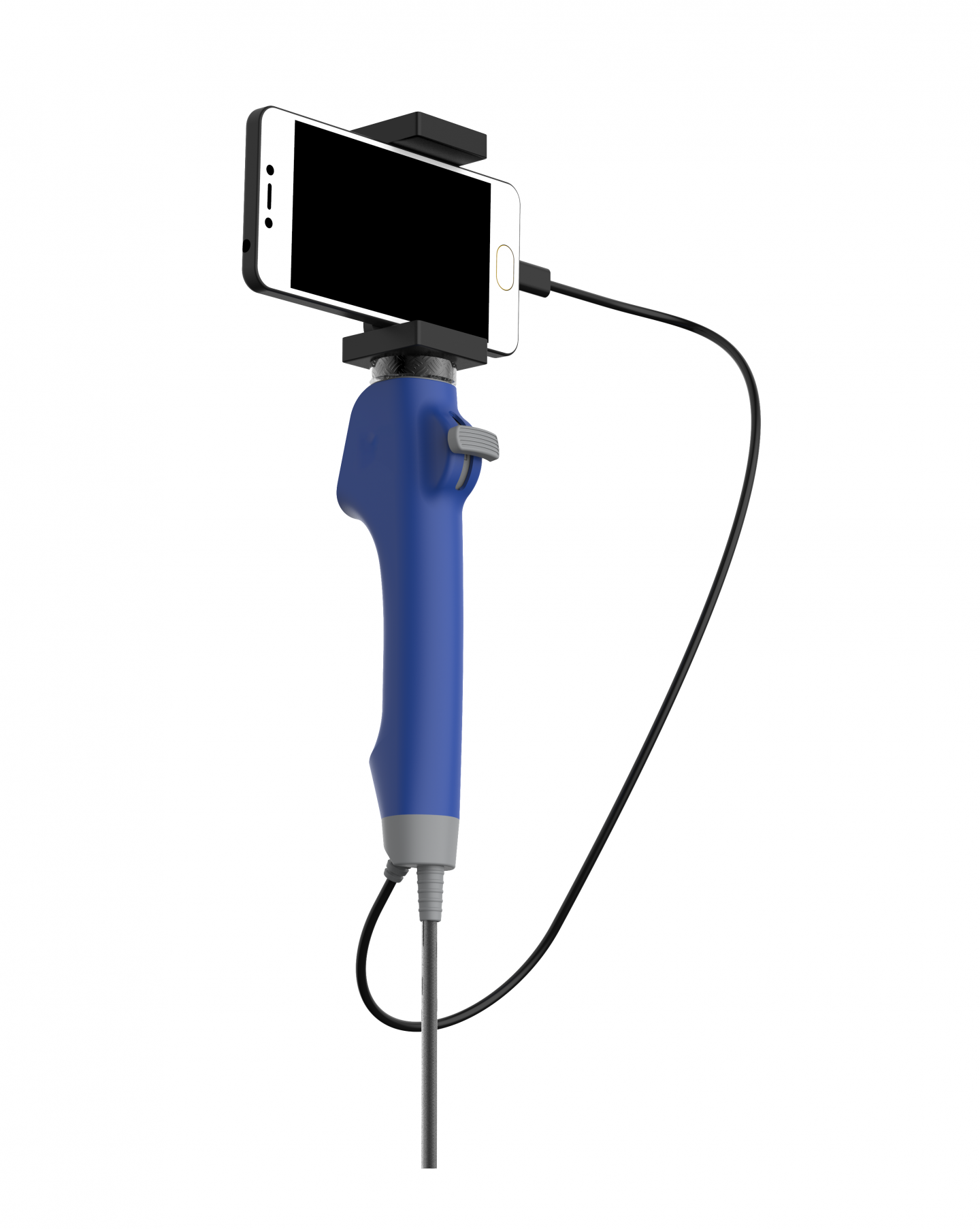

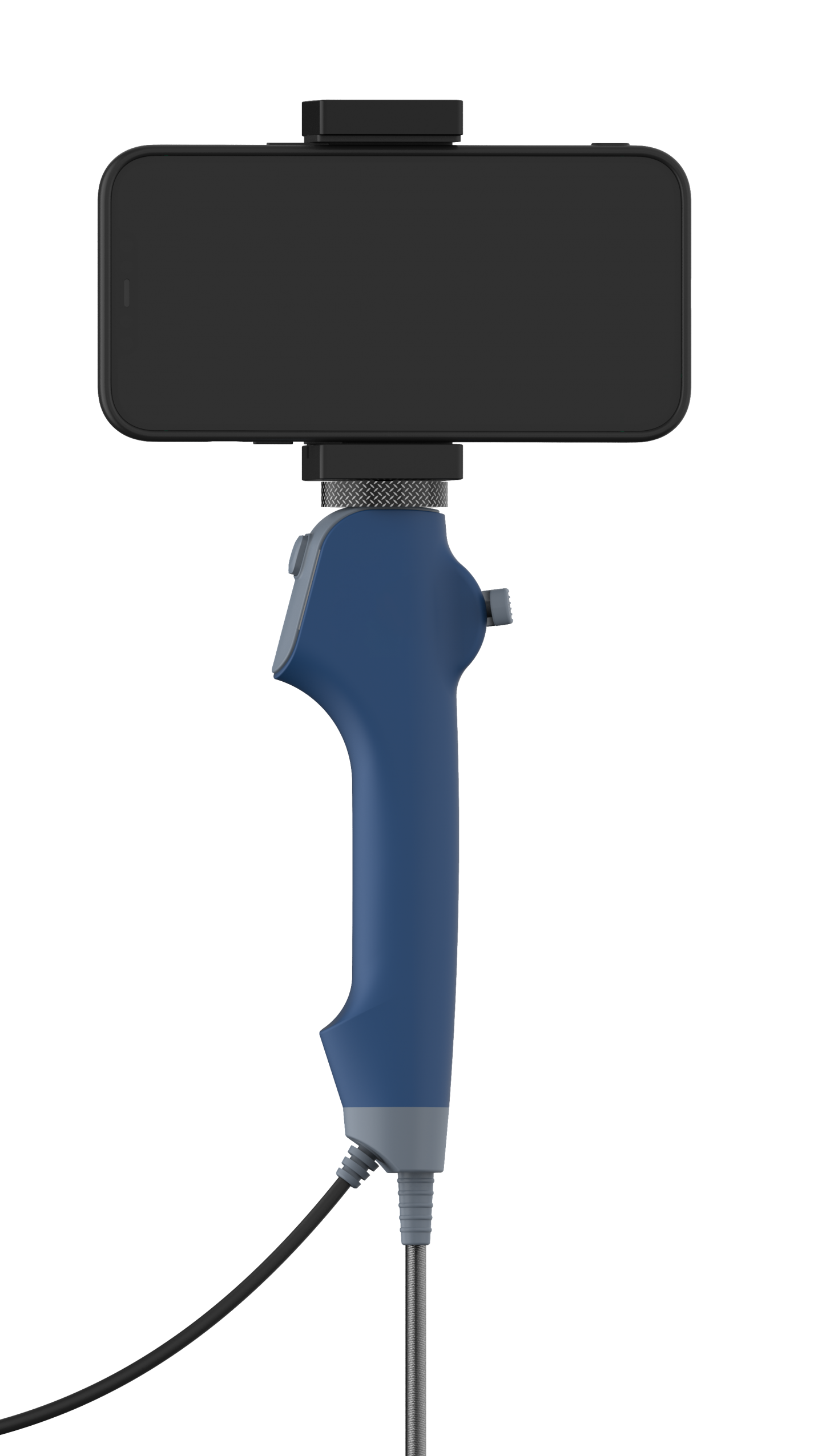

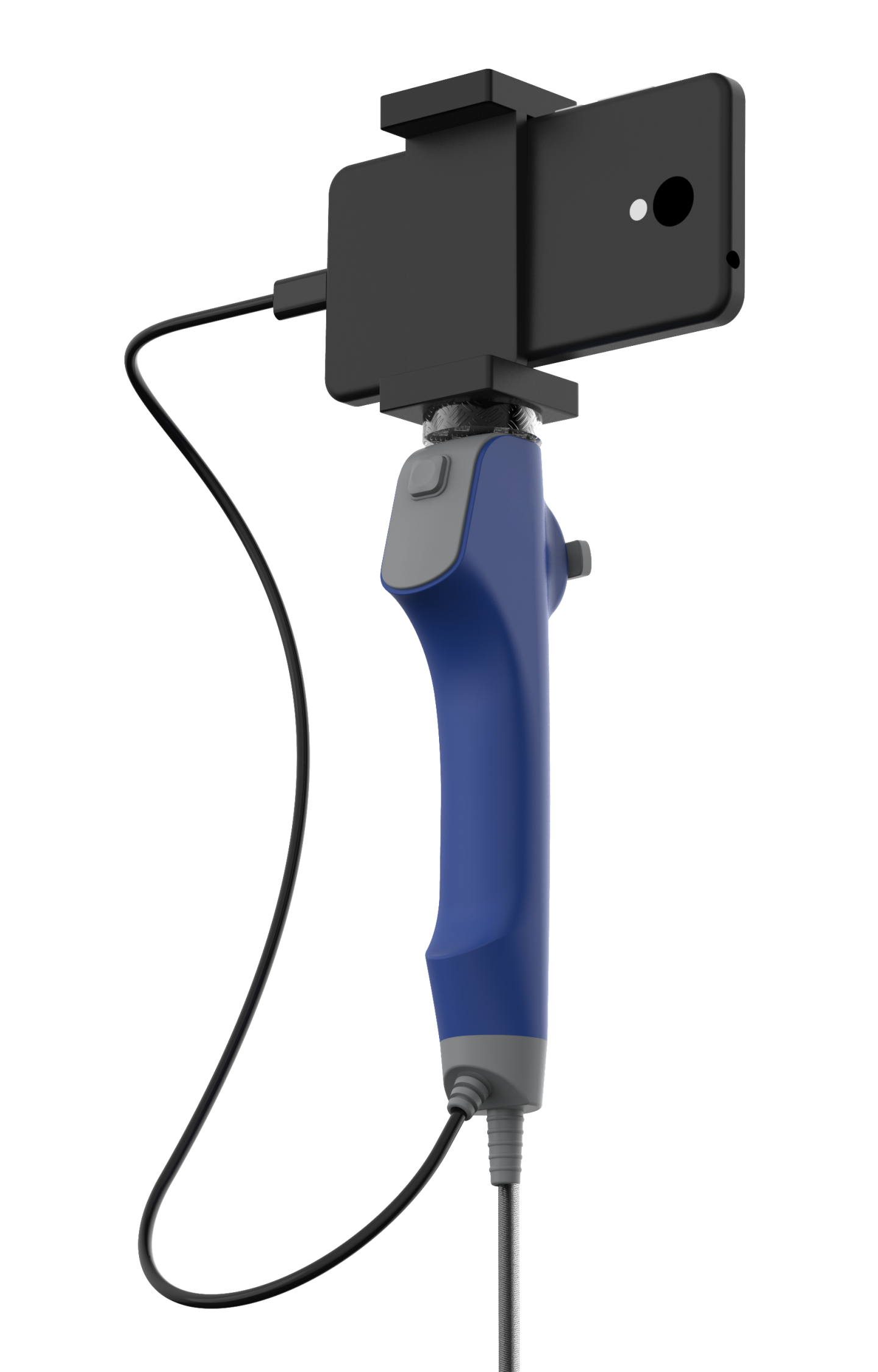

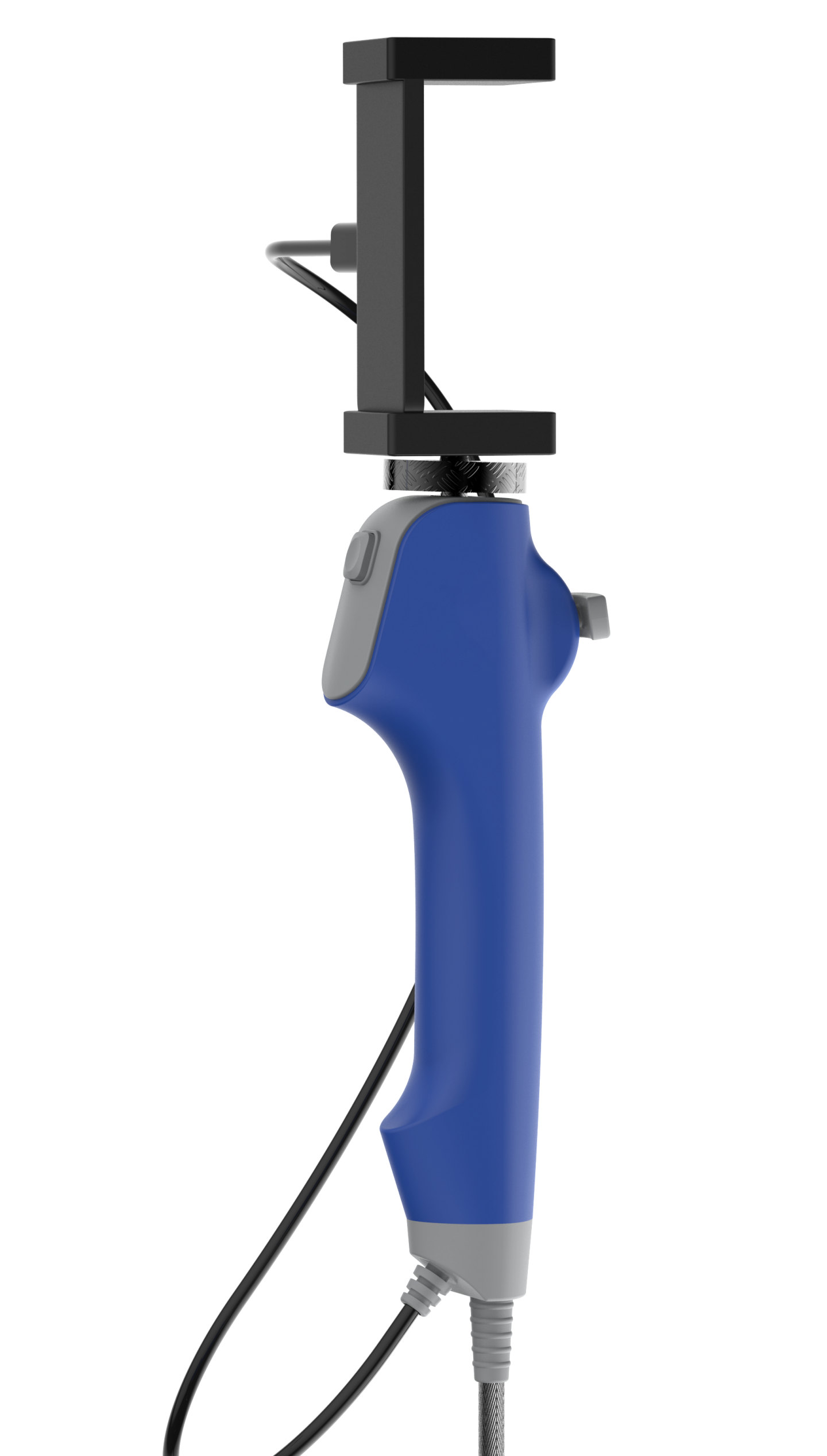

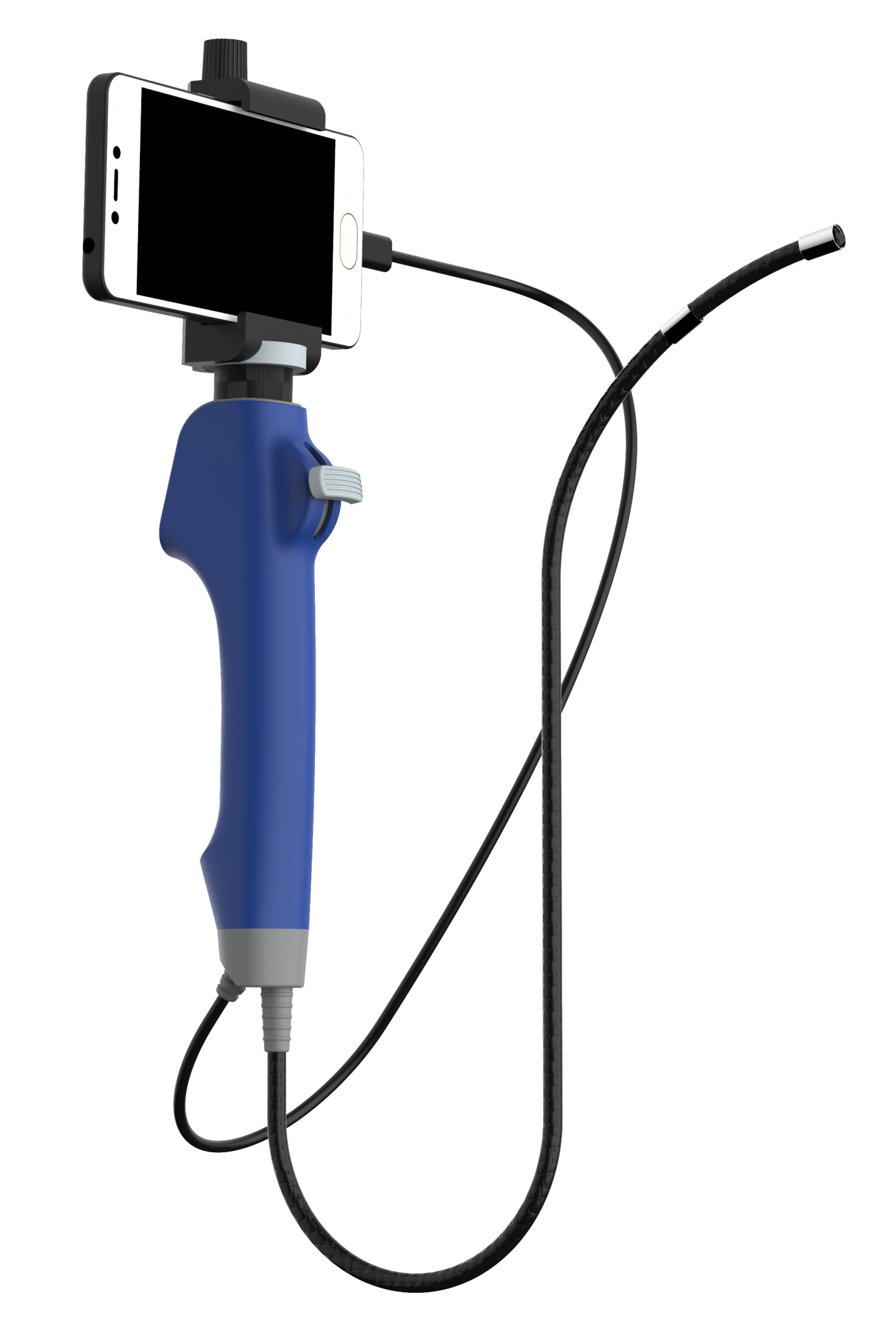

  TOC Series Smart Mobile Phone Borescope





  Compatible with android














  6mm & 3.9mm probe 1M probe line

  tow-ways steering Bending angle 180°

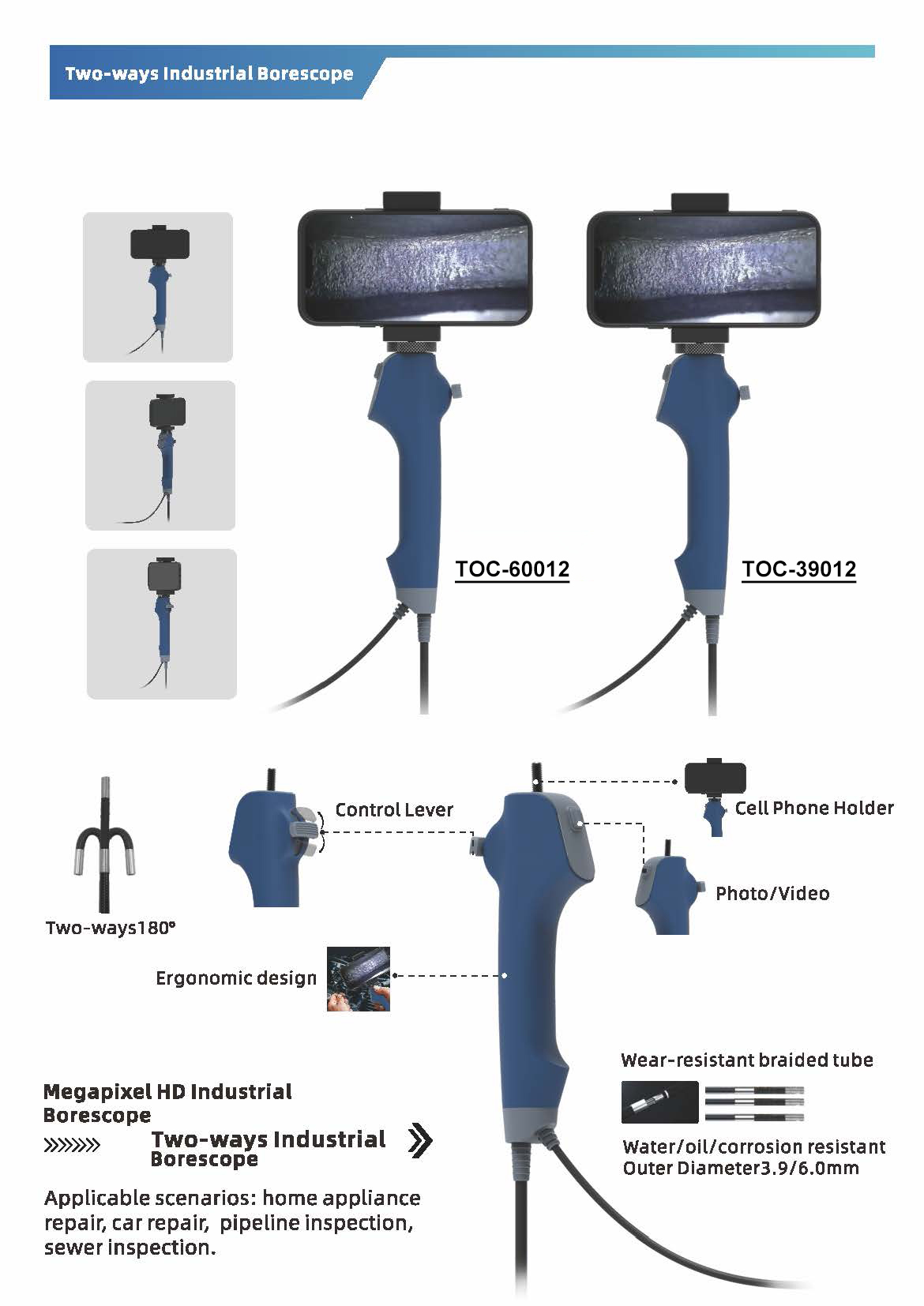

  TOC Series Smart Phone HD Video Borescope 2way articulation function

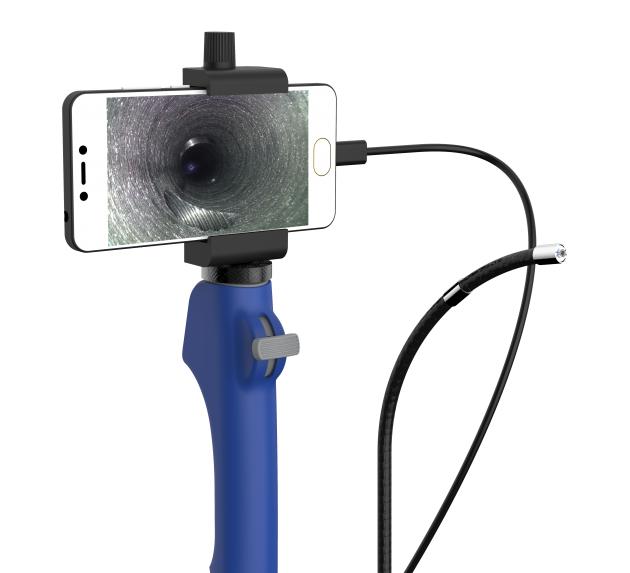

  Application scenario







• Specification

  TOC Series Technical Specifications – Video Borescopes Overview

  Series	TOC
  Prob​e Diameter	6mm / 3.9mm
  Viewing Direction	0° front
  Camera Pixels	1 MP
  D.O.F.	3mm ~ 10mm
  F.O.V.	100°
  Image Resolution	1280*720 (JPG)
  Video Resolution	1280*720(AVI)
  Operation method	Support touch or keyboard operation on the smartphone
  Support function	Photos, videos, brightness adjustment, zooming
  Image processing	With freeze, zoom, photo, flip, video playback function
  Probe Material	Wear-resistant tungsten wire braided tube
  Light Source	LED
  Probe Diamerter	6mm / 3.9mm
  Probe Length	1 M
  Bend angle	180º max
  Waterproof	Camera: IP67
  Structure	Handheld, integrated design
  Interface	USB-C
  Working Temperature	15℃~40℃
  Storage Temperature	-20℃~60℃
  Relative humidity	Max 90%，no condensation
  Working Time	≥2h
  Battery	charging lithium battery pack
  Box Size

• Model

  Complete Specifications of TOC Industrial Video Borescopes

  TOC 2 way Smart Mobile Phone Series

  Model	Tip Dia.	Length	Probe Material	Camera Res.	Bend Angle	Illumination
  TOC-39012	Ø3.9mm	1M	Wear-resistant tungsten wire braided tube	1 MP	180°	10000Lx
  TOC-60012	Ø6.0mm	1M	Wear-resistant tungsten wire braided tube	1 MP	180°	10000Lx
