CB10 Series 10＂HD screen 360° Pipe Inspection Camera Sewer Drain Video Borescope
Description：
- ∅23mm Full HD camera head front view(CB10-2830PT)
- Camera interchangeable design, cable lengh 30m / 60m / 80m
- One-touch video/audio recording and image capture
- Zoom function (8 Levels)
- Cable M/FT counter and text
- Camera built-in 521Hz transmitter
- Support max 256G SD card or USB stick
- RCA CVBS input, HDMI/RCA video output
- Storage box for the accessories
- 4-hour battery life
Download file
-
Features
CB10 Series 10＂HD screen 360° Pipe Inspection Camera Sewer Drain Video Borescope
Model: CB10-2830PT (cable lengh 30M)
Model: CB10-2860PT / CB10-2880PT (cable lengh 60M / 80M)
Standard Camera 1
Ø28mm Pan & Tilt Camera – 360° Rotation + 180° Tilt
Standard Camera 2
Ø23mm Full HD Front Camera – Standard on CB10-2830PT, Optional for CB10-2860PT & CB10-2880PT
●Camera size: ø23mm*120mm ●Pixel: 1920*1080 ●Leds: 12pcs ●Built-in 512Hz transmitter

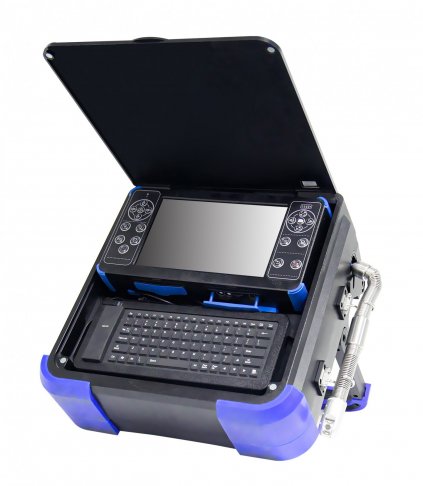

Control Terminal
10.1 inch HD LCD 1280*800
Work continuously for 4 hours
Keyboard Input
Model: CB10-2830PT

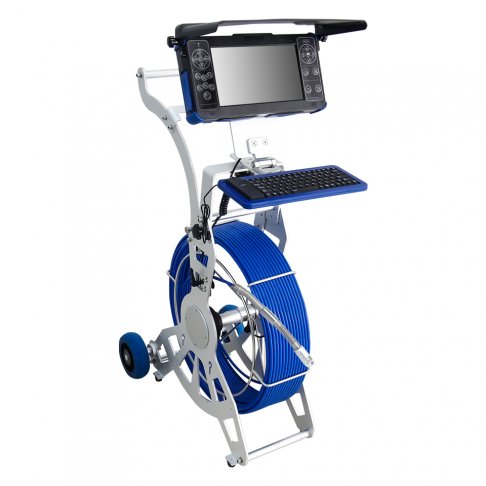

Model: CB10-2860PT
Part List
Model: CB10-2860PT
∅28mm Camera, ∅23mm full HD Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual
Part List
Model: CB10-2830PT
Universal skid 80-180mm (for option)
CB10 Pipe Inspection Camera Introduction
Video demonstration of actual pipeline work
Application
-
Series CB10-2830PT Probe Diameter(mm) ∅28mm ∅23mm Viewing Direction 360° Panning & 180° Tilting Camera Front view Camera Pixels 1280*720 1920*1080 D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 1280*720 JPEG 1920*1080 Video Resolution AVI 1280*720 AVI 1920*1080 Light Source LED 4pcs Adjustable light LED 12pcs Adjustable light Probe Length 30M Probe Diameter: 6.5mm Waterproof Camera: IP68 Display 10.1 inch HD LCD screen Display Resolution 1280*800 Working Time ≥4h Videoscope Size Case size: 505(L)*419(W)*180(H)mm Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory ∅28mm Camera, ∅23mm full HD Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual Option Universal skid (80-180mm) Portable Case Engineering plastic Package 60*30*60cm, GW:15kg Series CB10-2860PT / CB10-2880PT Probe Diameter(mm) ∅28mm Viewing Direction 360° Panning & 180° Tilting Camera Camera Pixels 1280*720 D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 1280*720 Video Resolution AVI 1280*720 Light Source LED 4pcs Adjustable light Probe Length 60M / 80M Probe Diameter: 8.3mm Waterproof Camera: IP68 Display 10.1 inch HD LCD screen Display Resolution 1280*800 Working Time ≥4h Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory ∅28mm Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual Option ∅23mm full HD Camera, Universal skid (80-180mm) Portable Case Engineering plastic Package 61*32*83.5cm , GW:27.5kg -
CB10PT Series ( 360° Pan-tilt Camera Heads)
Model Display Tip Dia. Length Rotation Camera Res. CB10-2830PT 10" Ø28mm
Ø23mm30M 360° Panning; 180° Tilting
Full HD1280*720 CB10-2860PT 10" Ø28mm 60M 360° Panning; 180° Tilting 1280*720 CB10-2880PT 10" Ø28mm 80M 360° Panning; 180° Tilting 1280*720
-
Introduction
Features
CB10 Series 10＂HD screen 360° Pipe Inspection Camera Sewer Drain Video Borescope
Model: CB10-2830PT (cable lengh 30M)
Model: CB10-2860PT / CB10-2880PT (cable lengh 60M / 80M)
Standard Camera 1
Ø28mm Pan & Tilt Camera – 360° Rotation + 180° Tilt
Standard Camera 2
Ø23mm Full HD Front Camera – Standard on CB10-2830PT, Optional for CB10-2860PT & CB10-2880PT
●Camera size: ø23mm*120mm ●Pixel: 1920*1080 ●Leds: 12pcs ●Built-in 512Hz transmitter
Control Terminal
10.1 inch HD LCD 1280*800
Work continuously for 4 hours
Keyboard Input
Model: CB10-2830PT
Model: CB10-2860PT
Part List
Model: CB10-2860PT
∅28mm Camera, ∅23mm full HD Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual
Part List
Model: CB10-2830PT
Universal skid 80-180mm (for option)
CB10 Pipe Inspection Camera Introduction
Video demonstration of actual pipeline work
Application
-
Specification
Series CB10-2830PT Probe Diameter(mm) ∅28mm ∅23mm Viewing Direction 360° Panning & 180° Tilting Camera Front view Camera Pixels 1280*720 1920*1080 D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 1280*720 JPEG 1920*1080 Video Resolution AVI 1280*720 AVI 1920*1080 Light Source LED 4pcs Adjustable light LED 12pcs Adjustable light Probe Length 30M Probe Diameter: 6.5mm Waterproof Camera: IP68 Display 10.1 inch HD LCD screen Display Resolution 1280*800 Working Time ≥4h Videoscope Size Case size: 505(L)*419(W)*180(H)mm Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory ∅28mm Camera, ∅23mm full HD Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual Option Universal skid (80-180mm) Portable Case Engineering plastic Package 60*30*60cm, GW:15kg Series CB10-2860PT / CB10-2880PT Probe Diameter(mm) ∅28mm Viewing Direction 360° Panning & 180° Tilting Camera Camera Pixels 1280*720 D.O.F. 3-50cm F.O.V. 90° Image Resolution JPEG 1280*720 Video Resolution AVI 1280*720 Light Source LED 4pcs Adjustable light Probe Length 60M / 80M Probe Diameter: 8.3mm Waterproof Camera: IP68 Display 10.1 inch HD LCD screen Display Resolution 1280*800 Working Time ≥4h Software Function Video/audio recording and image capture、Counter and text、Zoom function (x8 levels) Language English, French, German, Italian, Spanish, Czech, Dutch Standard Accessory ∅28mm Camera, Control terminal, Cable wheel, Main body, Keyboard, 64G SD card & card reader, Skid ∅40/90mm, Headphones, Charger, Screwdriver, Waterproof ring, Manual Option ∅23mm full HD Camera, Universal skid (80-180mm) Portable Case Engineering plastic Package 61*32*83.5cm , GW:27.5kg -
Model
CB10PT Series ( 360° Pan-tilt Camera Heads)
Model Display Tip Dia. Length Rotation Camera Res. CB10-2830PT 10" Ø28mm
Ø23mm30M 360° Panning; 180° Tilting
Full HD1280*720 CB10-2860PT 10" Ø28mm 60M 360° Panning; 180° Tilting 1280*720 CB10-2880PT 10" Ø28mm 80M 360° Panning; 180° Tilting 1280*720
