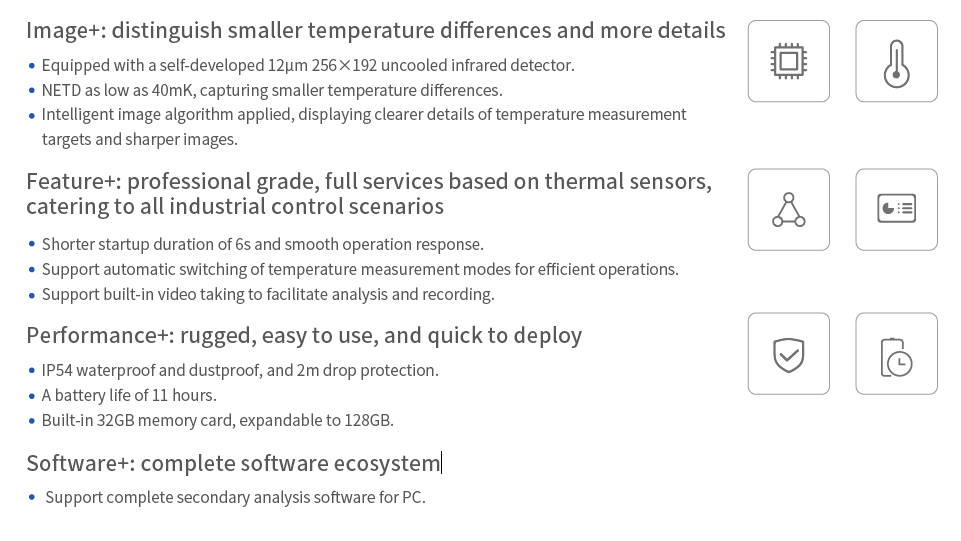

  Features




  Product Highlights

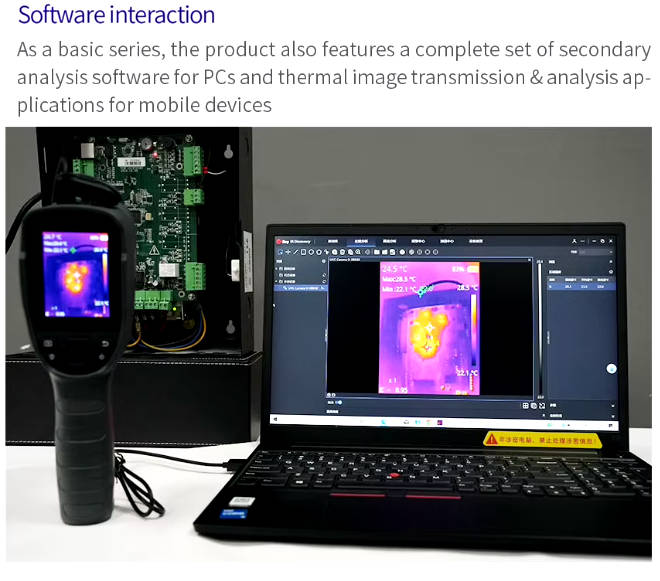

  Software interaction









  Applications

• Specification


  Thermal Imaging
  Detector Type	12μm uncooled infrared detector
  Infrared Resolution	256×192
  Spectral Band	7.5-14μm

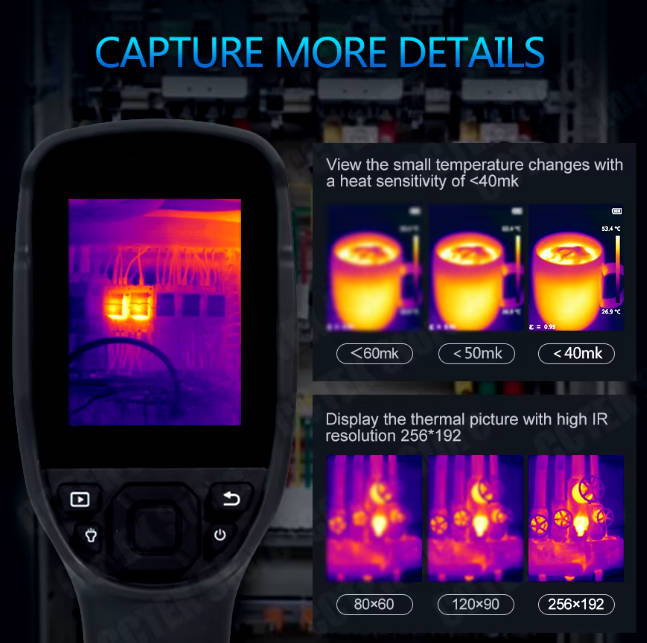

  Thermal Sensitivity (NETD)	＜40mK (25°C,F1.0)
  Frame Rate	25Hz
  Lens Focal Length	3.2mm
  FOV	56°×42°
  Spatial Resolution (IFOV)	3.75mrad
  Focus Mode	Fixed focus
  Minimum Imaging Distance	0.3m
  Measurement Range	-20°C~+150°C, 100°C~550°C
  Measurement Accuracy	±2°C or ±2% of readings, whichever is greater.
  Imaging Display
  Display	2.8 inch, 320×240
  Visible Light Camera	2 megapixels
  Digital Zoom	1×, 2×, 4×
  Palettes	7
  Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
  Temperature Width Stretch	Auto
  Measurement and Analysis
  Analysis Functions on the Device	Central temperature point/Highest temperature point/Lowest temperature point
  Supporting software	PC (Infrared Analysis Software)
  Storage Medium	Standard 32GB MicroSD, up to 128G
  Alarm Type	Highest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time(with temperature data).
  Power Management	Auto shut-down setting
  Others
  Battery	Built-in rechargeable lithium-ion battery
  Charging Mode	USB Type-C
  Battery Life	About 11h
  Interface	USB Type-C, SD card
  Tripod Socket	UNC 1/4-20 interface for tripod
  Operating Temperature	-10°C~+50°C
  Operating Humidity	10%~95% (non-condensing)
  Storage Temperature	-20°C~+60°C
  Ingress Protection Rating	IP54
  Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
  Weight and Dimensions	About 520g, 237×75×92mm
  Authentication	CE/RoHS/CMA, etc.
  Packing List	Infrared camera×1, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate
