Short-Tip Articulation VGA Probe 4.5mm (J series)
1 / 5
  • Short-Tip Articulation VGA Probe 4.5mm (J series)
  • Short-Tip Articulation VGA Probe 4.5mm (J series)
  • Short-Tip Articulation VGA Probe 4.5mm (J series)
  • Short-Tip Articulation VGA Probe 4.5mm (J series)
  • Short-Tip Articulation VGA Probe 4.5mm (J series)
Short-Tip Articulation VGA Probe 4.5mm (J series)
Description:
Ø4.5mm / Ø6.0mm Articulaltion Probe

• More inspection areas :
180º bending angle, more inspection areas.

• Superior durability abrasion :
Full outer braided stainless steel tube provides superior durability abrasion, rusty and temperature resistance.
Download file
  • Introduction
  • Specification
  • Console System
  • Model
  • Optional Accessory
  • Application
  • NEW MATERIAl OF PROBE
    SHORT TIP ARTICULATION

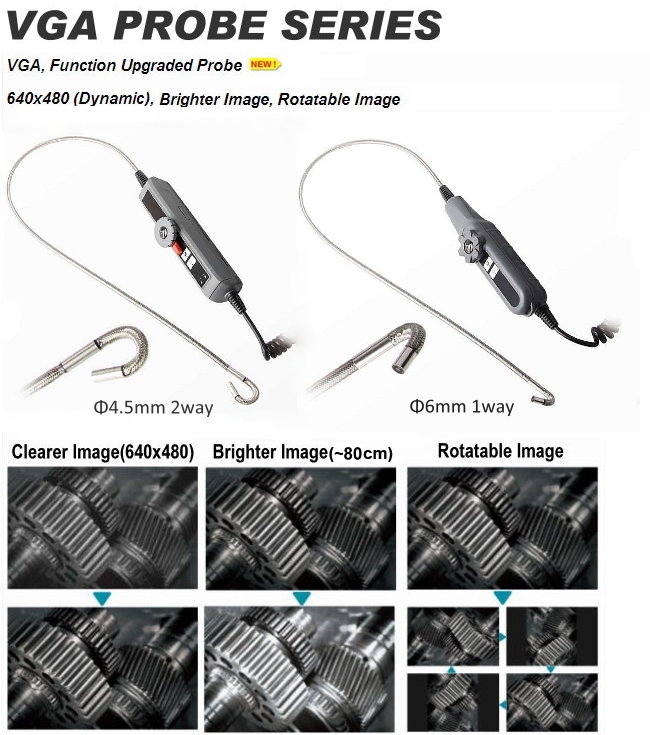

    VGA,Function Upgraded Probe
    640x480(Dynamic),Brighter Image(~80cm),Rotatable Image

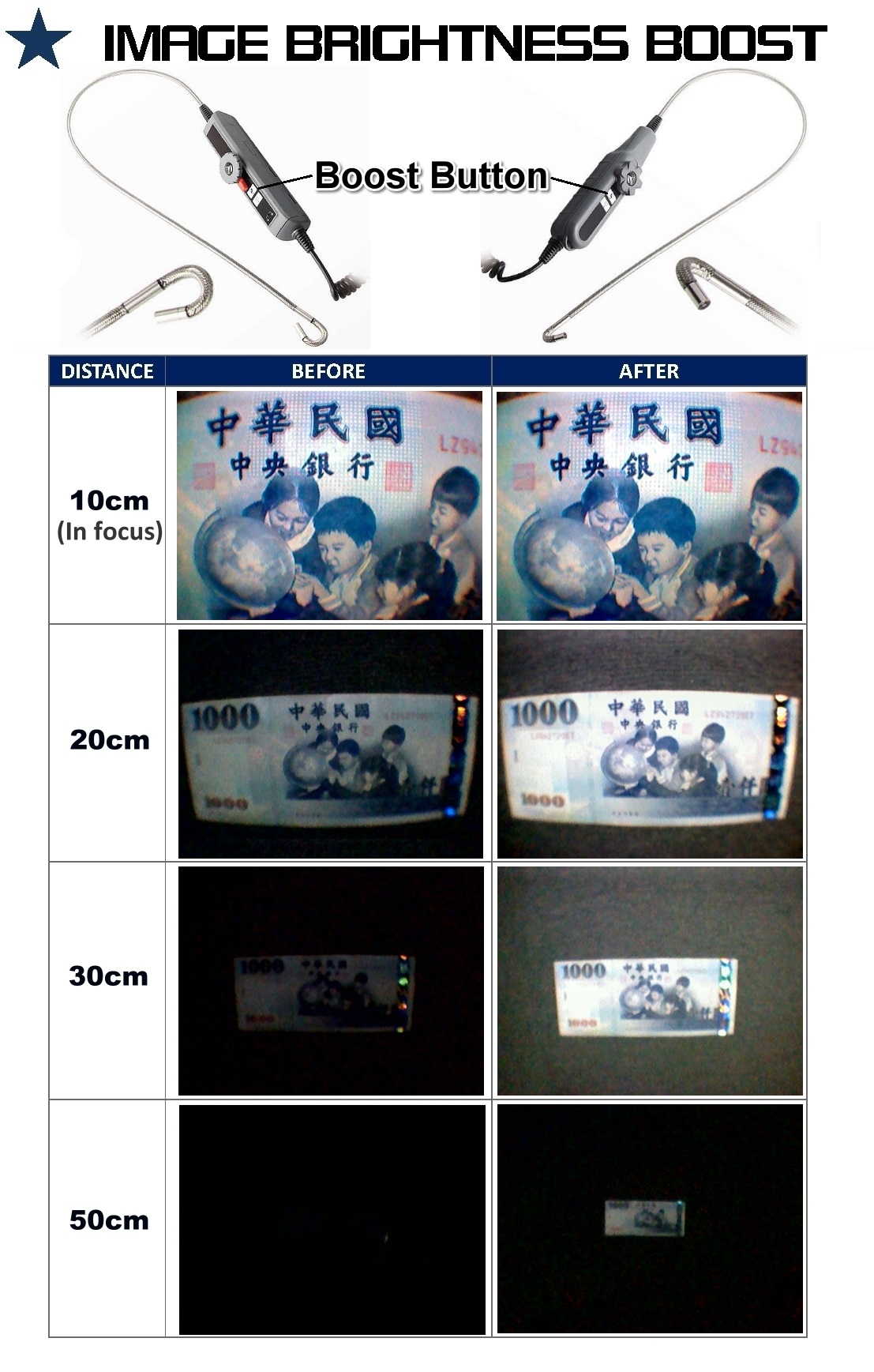

    IMAGE BRIGHTNESS BOOST

    Articulation Probes Compare

    360° Articulation

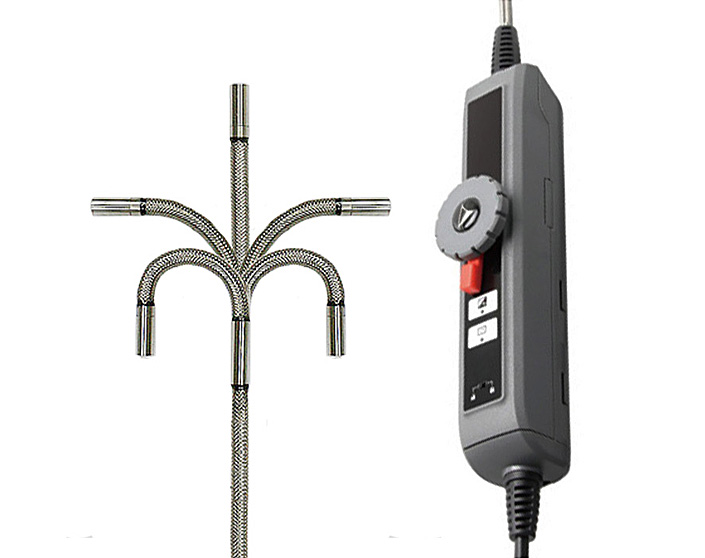

    Short - Tip Articulation(2 Way Articulation)

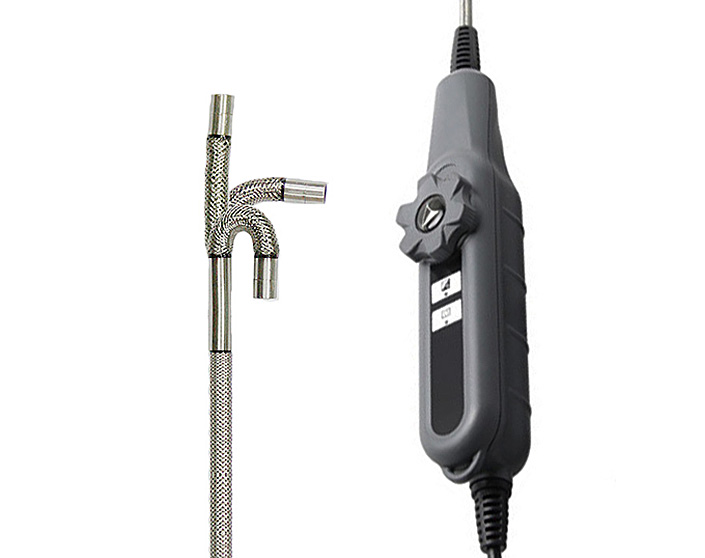

    Short - Tip Articulation(1 Way Articulation)
    2 Way Articulation


    **Short-Tip Articulation VGA Probe 4.5mm (J Series) Introduction**

    Introducing the Short-Tip Articulation VGA Probe 4.5mm (J Series), enhancing your inspection tasks with greater flexibility and efficiency. Crafted with new materials and featuring short-tip articulation technology, this probe delivers outstanding inspection performance.

    Equipped with a VGA probe boasting a dynamic resolution of 640x480, it provides brighter images at extended distances of up to 80cm, along with the capability to rotate images for added versatility.

    The Image Brightness Boost function further enhances visibility, allowing effortless inspections in various environments. With 360° articulation, this probe offers unparalleled control, enabling adaptability in navigating confined spaces compared to other probes.

    Choose the Short-Tip Articulation VGA Probe 4.5mm (J Series) for an advanced probe technology that brings efficiency, flexibility, and precision to your inspection experience.


  • Features Description
    Probe Type 2 Way Articulation 1 Way Articulation
    Tip Diamete Ø 4.5 mm Ø 6.0 mm
    Camera Length 13mm 10mm
    Camera Material Stainless Steel
    F.O.V 90° 87°
    D.O.F. 10 mm ~ 60 mm 10 mm ~ 100 mm
    Resolution 640 X 480 ( VGA )
    Light Source White LED * 5
    Working Temperature -10°C ~ 60°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1.5M / 3M 1M
    Articulation Angle Right / Left : 180°  ( 1M ) Right : 180°  ( 1M )
    Articulation Radius (at angle 90°) ≒ 35mm ( 1M ) ≒ 30mm ( 1M )
    Articulation Radius (at max angle) ≒ 30mm ( 1M ) ≒ 20mm ( 1M )
    Mirror Unavailable
    Waterpoof IP67
  •

    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More



    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model Type of Probe Tip Diameter Length Material of Tube Console System
    JKVS-45022 2 Way articulation Ø4.5mm 1.5M Braided Stainless steel 7" Monitor
    JKVS-45032 2 Way articulation Ø4.5mm 3M Braided Stainless steel 7" Monitor
    JKVS-60011 1 Way articulation Ø6.0mm 1M Braided Stainless steel 7" Monitor
    JFVS-45022 2 Way articulation Ø4.5mm 1.5M Braided Stainless steel 3.5" Monitor
    JFVS-45032 2 Way articulation Ø4.5mm 3M Braided Stainless steel 3.5" Monitor
    JFVS-60011 1 Way articulation Ø6.0mm 1M Braided Stainless steel 3.5" Monitor


  • Holding Tube

    Extender to inspect areas lower or higher than eye level.
    - Diameter : Ø8mm
    - Lengh : 990mm


  • Building Data....
  • Introduction

    NEW MATERIAl OF PROBE
    SHORT TIP ARTICULATION



    VGA,Function Upgraded Probe
    640x480(Dynamic),Brighter Image(~80cm),Rotatable Image

    IMAGE BRIGHTNESS BOOST

    Articulation Probes Compare

    360° Articulation
    Short - Tip Articulation(2 Way Articulation)
    Short - Tip Articulation(1 Way Articulation)
    2 Way Articulation


    **Short-Tip Articulation VGA Probe 4.5mm (J Series) Introduction**

    Introducing the Short-Tip Articulation VGA Probe 4.5mm (J Series), enhancing your inspection tasks with greater flexibility and efficiency. Crafted with new materials and featuring short-tip articulation technology, this probe delivers outstanding inspection performance.

    Equipped with a VGA probe boasting a dynamic resolution of 640x480, it provides brighter images at extended distances of up to 80cm, along with the capability to rotate images for added versatility.

    The Image Brightness Boost function further enhances visibility, allowing effortless inspections in various environments. With 360° articulation, this probe offers unparalleled control, enabling adaptability in navigating confined spaces compared to other probes.

    Choose the Short-Tip Articulation VGA Probe 4.5mm (J Series) for an advanced probe technology that brings efficiency, flexibility, and precision to your inspection experience.


  • Specification
    Features Description
    Probe Type 2 Way Articulation 1 Way Articulation
    Tip Diamete Ø 4.5 mm Ø 6.0 mm
    Camera Length 13mm 10mm
    Camera Material Stainless Steel
    F.O.V 90° 87°
    D.O.F. 10 mm ~ 60 mm 10 mm ~ 100 mm
    Resolution 640 X 480 ( VGA )
    Light Source White LED * 5
    Working Temperature -10°C ~ 60°C
    Probe Material Outer Braided Stainless Steel
    Probe Length 1.5M / 3M 1M
    Articulation Angle Right / Left : 180°  ( 1M ) Right : 180°  ( 1M )
    Articulation Radius (at angle 90°) ≒ 35mm ( 1M ) ≒ 30mm ( 1M )
    Articulation Radius (at max angle) ≒ 30mm ( 1M ) ≒ 20mm ( 1M )
    Mirror Unavailable
    Waterpoof IP67
  • Console System


    JK Main Console System

     ‧ Large 7" HQ LCD Monitor (800*480)
    ‧ Snapshot & Video Recording with Audio (640*480)
    ‧ LED brightness adjustment
    ‧ Mirror Image & Image Rotation
    ‧ 5X Zoom In ( 1.5X / 2.0X / 5.0X )
    ‧ USB to PC Conneciotn
    ‧ Live View Software to PC
    ‧ Long duty hour up to 6 hrs
    ‧ 1 meter drop test
    ‧ Waterproof and dustproof grade IP 55

    Read More



    JF Main Console System

    ‧ 3.5" TFT LCD Monitor (320*240)
    ‧ Snapshot & Video Recording (640*480)
    ‧ LED brightness adjustment
    ‧ 2X Zoom In & Mirror Image
    ‧ USB to PC Conneciotn

    Read More
  • Model
    Model Type of Probe Tip Diameter Length Material of Tube Console System
    JKVS-45022 2 Way articulation Ø4.5mm 1.5M Braided Stainless steel 7" Monitor
    JKVS-45032 2 Way articulation Ø4.5mm 3M Braided Stainless steel 7" Monitor
    JKVS-60011 1 Way articulation Ø6.0mm 1M Braided Stainless steel 7" Monitor
    JFVS-45022 2 Way articulation Ø4.5mm 1.5M Braided Stainless steel 3.5" Monitor
    JFVS-45032 2 Way articulation Ø4.5mm 3M Braided Stainless steel 3.5" Monitor
    JFVS-60011 1 Way articulation Ø6.0mm 1M Braided Stainless steel 3.5" Monitor

  • Optional Accessory

    Holding Tube

    Extender to inspect areas lower or higher than eye level.
    - Diameter : Ø8mm
    - Lengh : 990mm


  • Application
    Building Data....
